2102318-1
lmages are for reference only.2102318-1
CONN HEADER 90POS EDGE MNT
Datasheet-
97,757 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black
2102318-1
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | Fortis Zd |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Header, Male Pins |
| Connector Style | - |
| Number of Positions | 90 |
| Number of Positions Loaded | All |
| Pitch | - |
| Number of Rows | 9 |
| Number of Columns | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | - |
| Features | Shielded |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
| Current Rating (Amps) | - |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -65°C ~ 125°C |
| Voltage Rating | - |
| Base Product Number | 2102318 |
| Product Attribute |  |
 |
 |
|

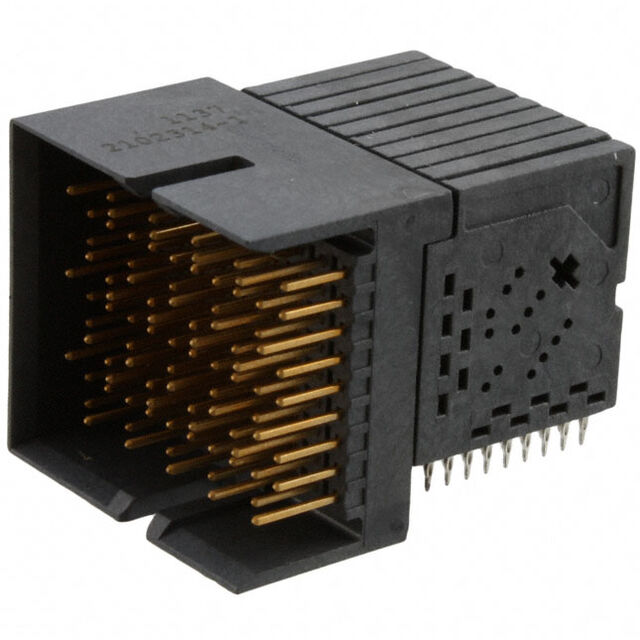

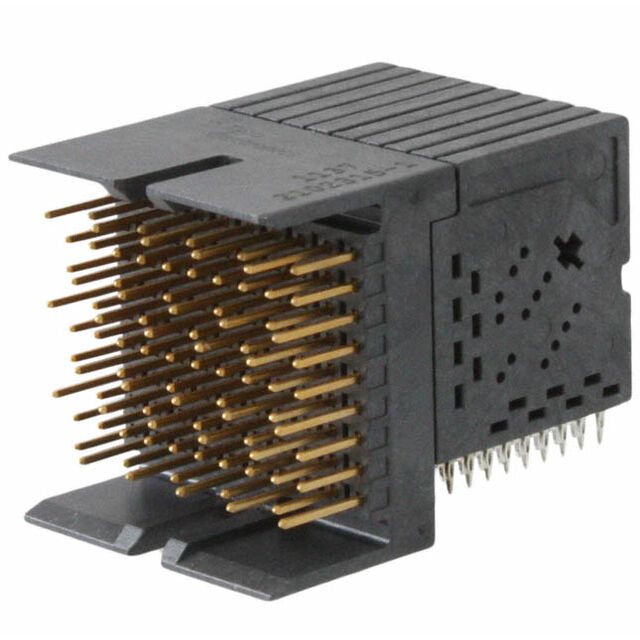

| Part Number | 2102318-2 | 2102314-1 | 2102315-1 | 2102315-2 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FORTIS ZD 10 COL R/A FULL SHROUD | CONN HEADER 90POS EDGE MNT | CONN HEADER 90POS EDGE MNT | FORTIS ZD 10 COL R/A CENTER ASSY |
| Series | - | Fortis Zd | Fortis Zd | - |
| Packaging | Bulk | Tray | Tube | Bulk |
