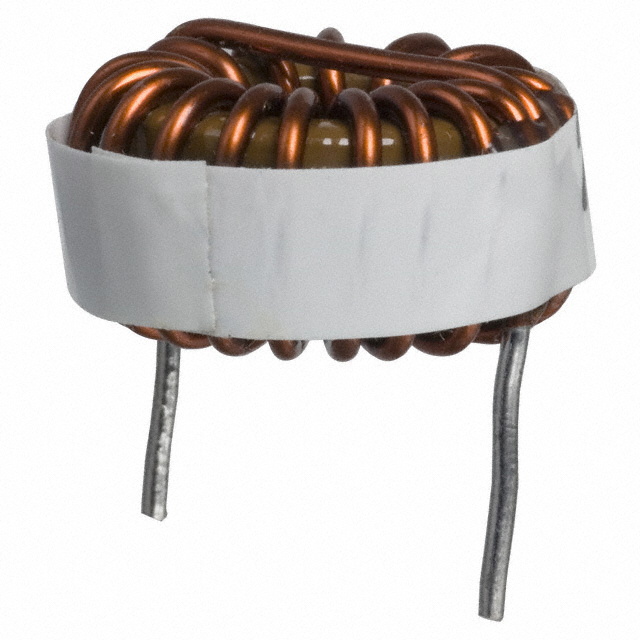

2118-H-RC
lmages are for reference only.2118-H-RC
FIXED IND 330UH 1.7A 230 MOHM TH
DatasheetRadial, Horizontal (Open)
55,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Toroidal Inductor 1.7 A 230mOhm Max Radial, Horizontal (Open)
2118-H-RC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 2100 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.860" Dia (21.84mm) |
| Height - Seated (Max) | 0.450" (11.43mm) |
| Base Product Number | 2118 |
| Product Attribute |  |
 |
 |
|
| Part Number | 2118-H | 2110-H | 2110-H-RC | 2110-V |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FIXED IND 330UH 1.7A 230 MOHM TH | FIXED IND 56UH 3.4A 60 MOHM TH | FIXED IND 56UH 3.4A 60 MOHM TH | FIXED IND 56UH 3.4A 60 MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
