Product CatalogPart Number
2176633-1
Manufacturer
TE Connectivity Passive ProductDescription
SQMB10 1R0 (WIRE) 5%
Datasheet
DatasheetPackage
Radial
In Stock
99,266 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2176633-1
2176633-1

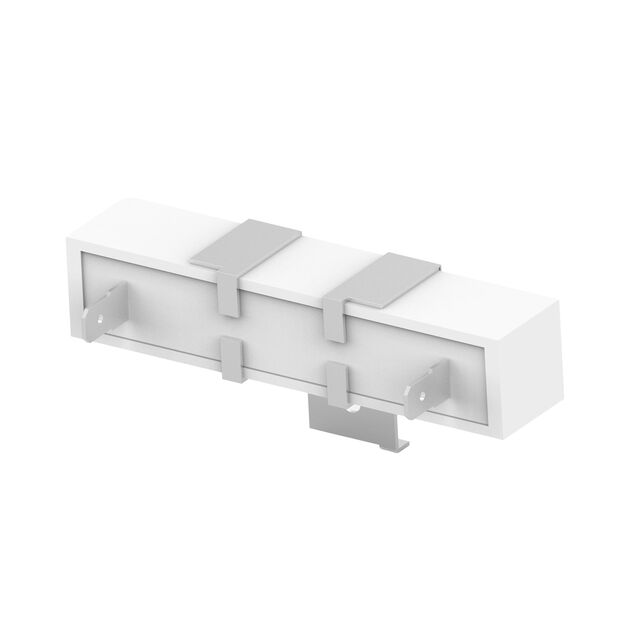

lmages are for reference only.Payment Methods
Delivery Services
1 Ohms ±5% 10W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
Quick Inquiry
2176633-1
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SQ, CGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 10W |
| Composition | Wirewound |
| Features | Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature | -55°C ~ 250°C |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 2176633-2 | 2176633-3 | 2176633-4 | 2176633-5 |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SQMB10 1R1 (WIRE) 5% | SQMB10 1R2 (WIRE) 5% | SQMB10 1R3 (WIRE) 5% | SQMB10 1R5 (WIRE) 5% |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Bulk | Bulk | Bulk | Bulk |
