2200HT-181-H
lmages are for reference only.2200HT-181-H
FIXED IND 180UH 4.6A 82 MOHM TH
DatasheetRadial, Horizontal (Open)
66,667 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
180 µH Shielded Toroidal Inductor 4.6 A 82mOhm Max Radial, Horizontal (Open)
2200HT-181-H
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 2200HT |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 180 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 82mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 200°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.950" Dia (24.13mm) |
| Height - Seated (Max) | 0.550" (13.97mm) |
| Base Product Number | 2200HT |
| Product Attribute | |
 |
 |
 |

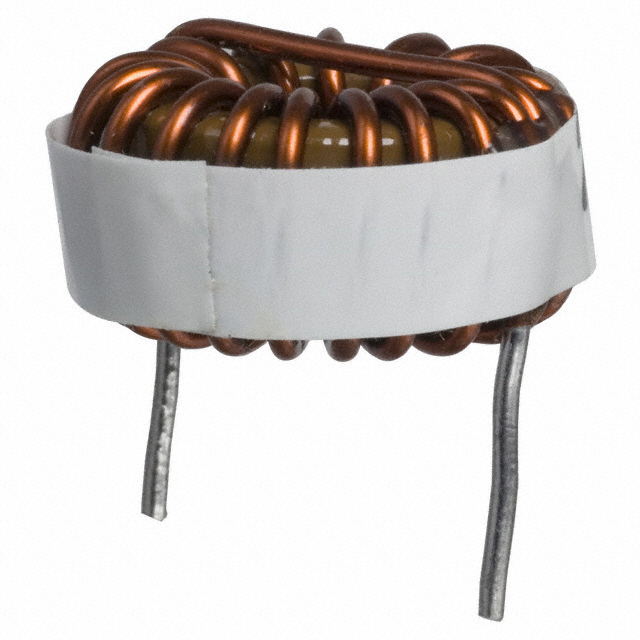

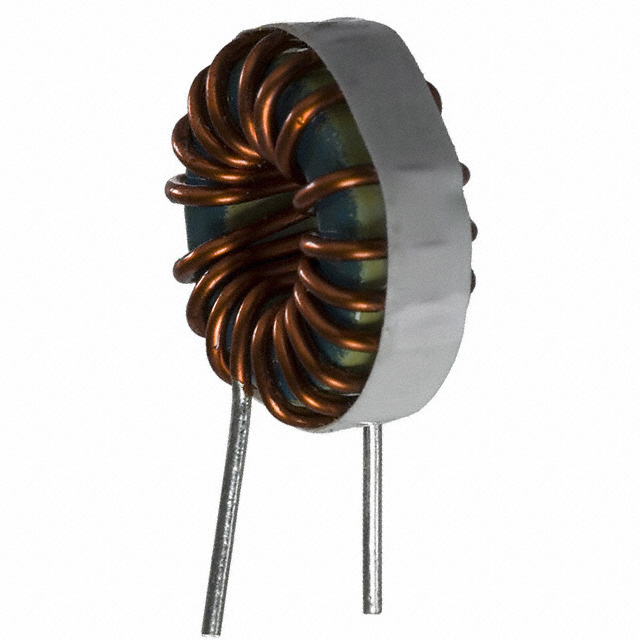

| Part Number | 2200HT-181-H | 2200HT-181-H-RC | 2200HT-181-V-RC | 2200HT-180-H-RC |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 180UH 4.6A 82 MOHM TH | FIXED IND 180UH 4.6A 82 MOHM TH | FIXED IND 180UH 4.6A 82 MOHM TH | FIXED IND 18UH 9.7A 18 MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Bulk | Bulk | Bulk | Tray |
