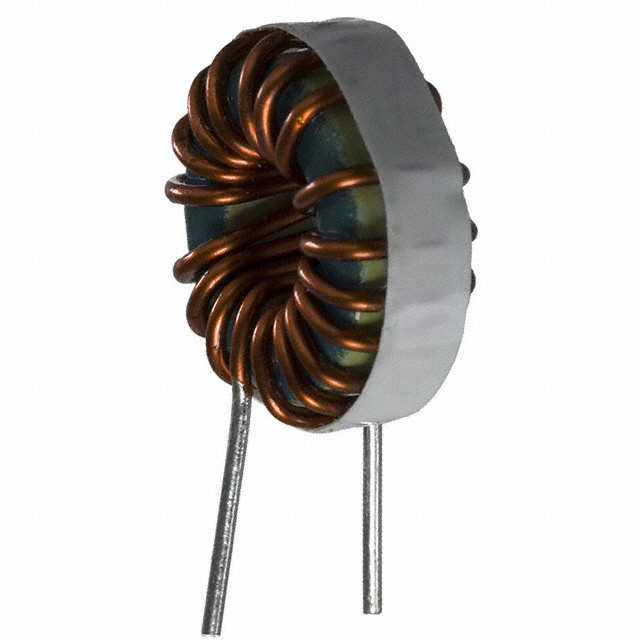

2200HT-1R2-V-RC
lmages are for reference only.2200HT-1R2-V-RC
FIXED IND 1.2UH 23.8A 3 MOHM TH
DatasheetRadial, Vertical (Open)
79,062 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µH Shielded Toroidal Inductor 23.8 A 3mOhm Max Radial, Vertical (Open)
2200HT-1R2-V-RC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 2200HT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 1.2 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 23.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 200°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) |
| Height - Seated (Max) | - |
| Base Product Number | 2200HT |
| Product Attribute | |
 |
|
 |

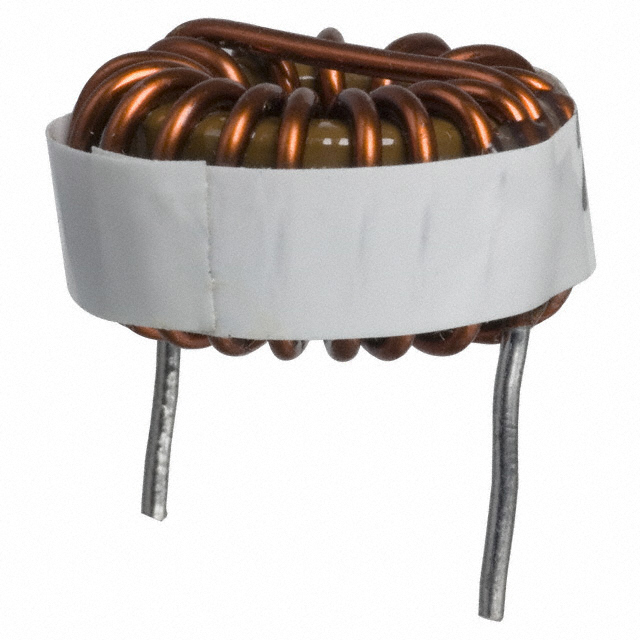

| Part Number | 2200HT-1R2-H-RC | 2200HT-1R8-H-RC | 2200HT-1R8-H-RC | 2200HT-1R8-V-RC |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.2UH 23.8A 3 MOHM TH | FIXED IND 1.8UH 21.8A 4 MOHM TH | FIXED IND 1.8UH 21.8A 4 MOHM TH | FIXED IND 1.8UH 21.8A 4 MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tray | Tray | Tray | Tray |
