Product CatalogPart Number
2232532-3
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN HEADER VERT 3POS 5MM
Datasheet
DatasheetPackage
-
In Stock
74,116 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2232532-3
2232532-3
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 3 position 0.197" (5.00mm)
Quick Inquiry
2232532-3
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Glow Wire Compliant |
| Operating Temperature | -40°C ~ 120°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | General Purpose |
| Base Product Number | 2232532 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 2232532-2 | 2232532-4 | 2232532-5 | 2232532-7 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 2POS 5MM | CONN HEADER VERT 4POS 5MM | CONN HEADER VERT 5POS 5MM | CONN HEADER VERT 7POS 5MM |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

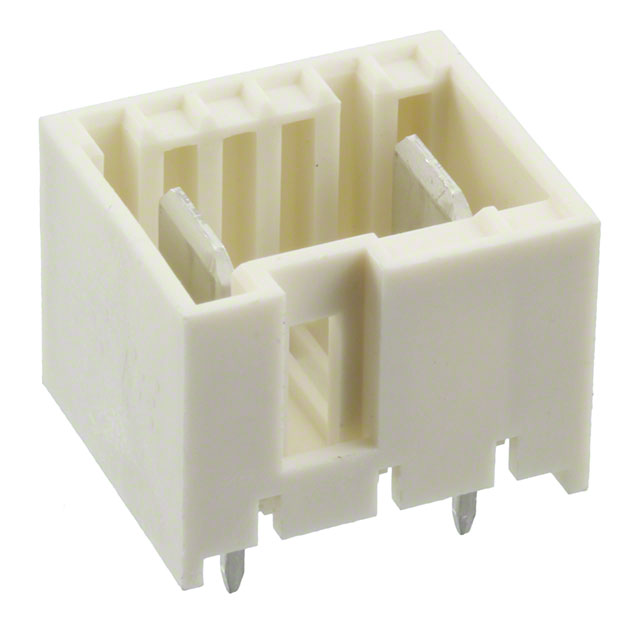

2232511-3
TE Connectivity AMP Connectors
2232511-4
TE Connectivity AMP Connectors

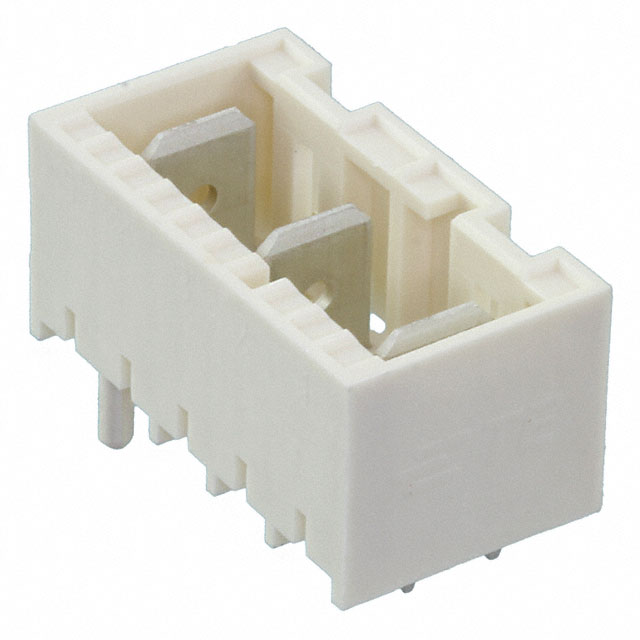

2232511-5
TE Connectivity AMP Connectors

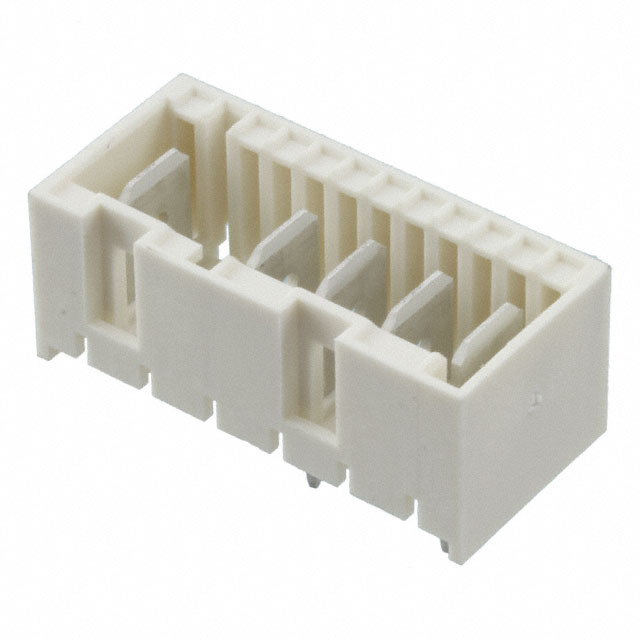

2232511-6
TE Connectivity AMP Connectors

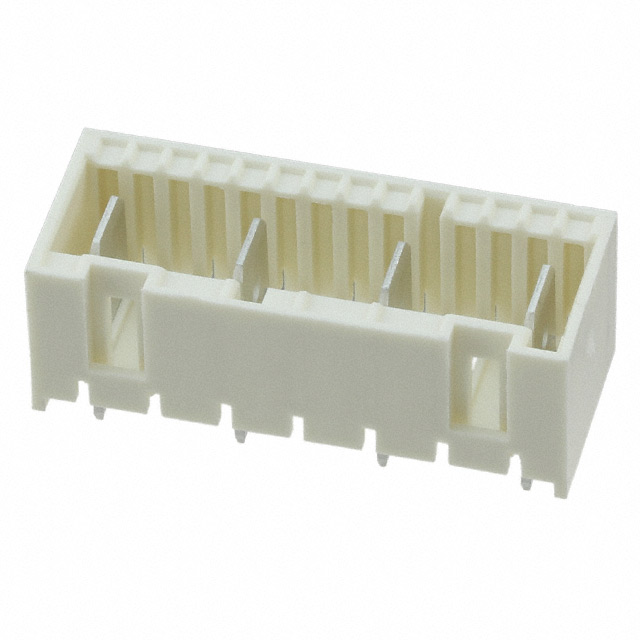

2232511-7
TE Connectivity AMP Connectors

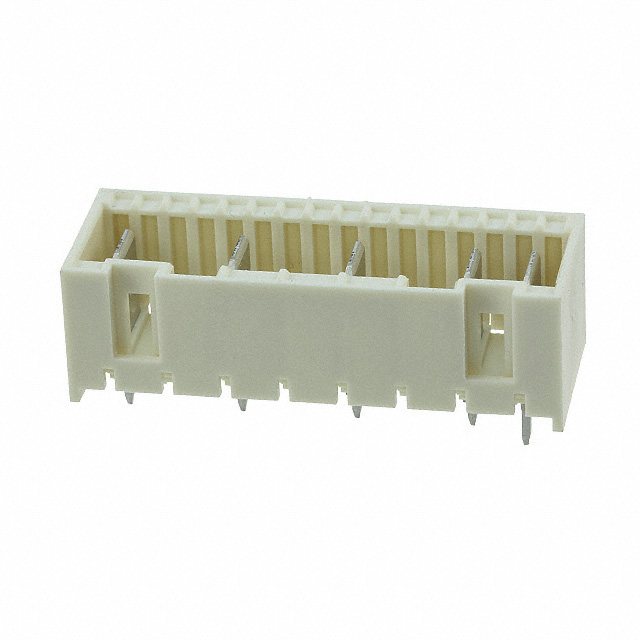

2232511-8
TE Connectivity AMP Connectors
2232512-5
TE Connectivity AMP Connectors
2232521-1
TE Connectivity AMP Connectors
2232532-2
TE Connectivity AMP Connectors

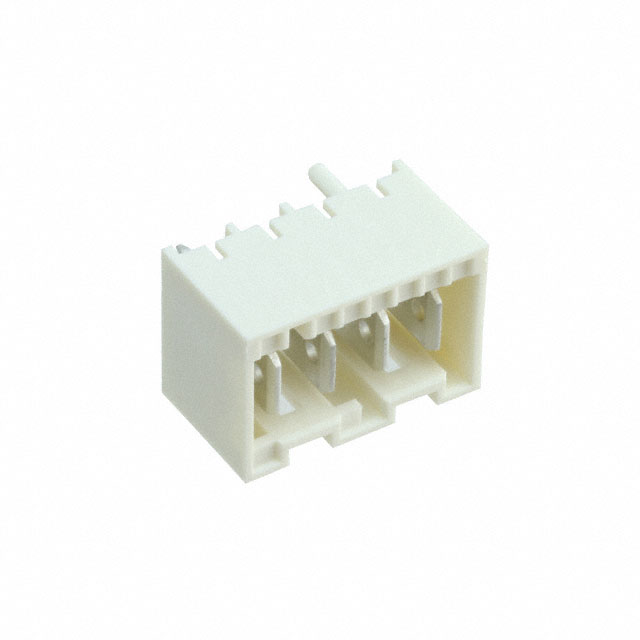

2232532-4
TE Connectivity AMP Connectors

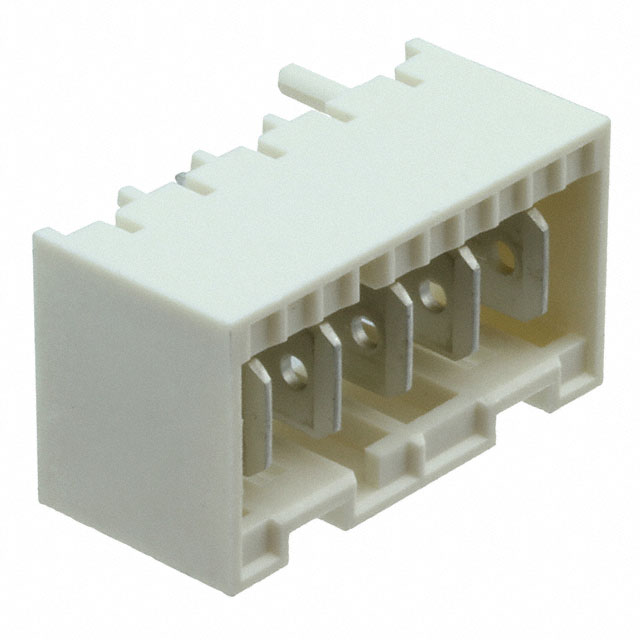

2232532-5
TE Connectivity AMP Connectors

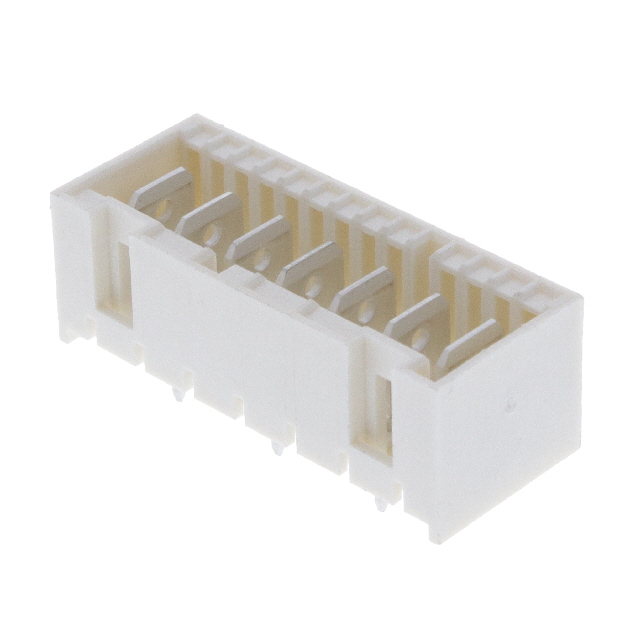

2232532-7
TE Connectivity AMP Connectors

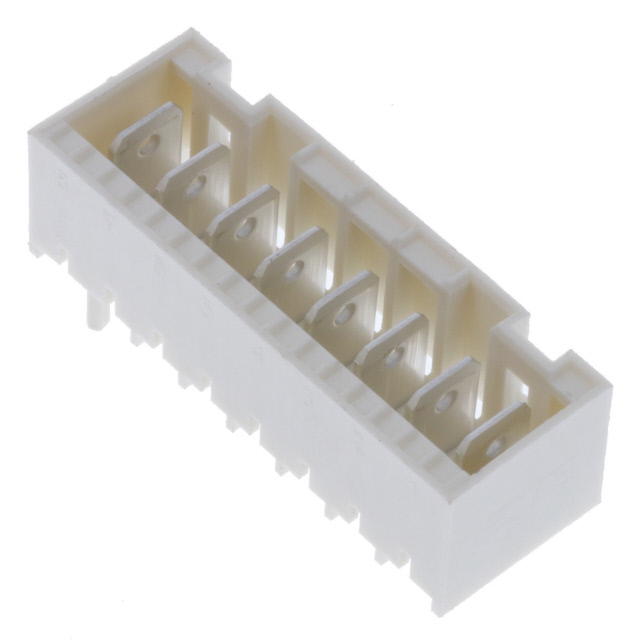

2232532-8
