112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 78

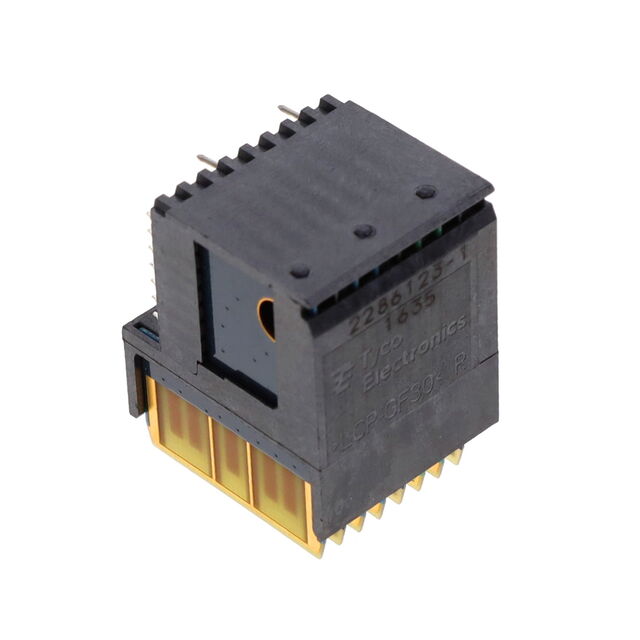

2286120-1
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MULTIGIG RT2-R |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | VITA 78 |
| Number of Positions | 112 |
| Number of Positions Loaded | All |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Contact Layout, Typical | 4 Signal Pairs, 26 Single Signal, 18 Power Groups, 15 Ground, 9 Open |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
| Current Rating (Amps) | 1.5A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 105°C |
| Voltage Rating | 166VAC/DC |
| Base Product Number | 2286120 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2286123-1 | 2286117-1 | 2286118-1 | 2286119-1 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | MULTIGIG RT2-R,DC,SPACE VPX-MODU | MULTIGIG RT2-R,DC, SPACE VPX-MOD | MULTIGIG RT2-R,DC, SPACE VPX-MOD | MULTIGIG RT2-R,DC, SPACE VPX- MO |
| Series | - | MULTIGIG RT2-R | MULTIGIG RT2-R | MULTIGIG RT2-R |
| Packaging | Bulk | Bulk | Bulk | Bulk |
