Product CatalogPart Number
2292055-1
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN RCPT 50POS R/A SMD GOLD
Datasheet
DatasheetPackage
-
In Stock
43,835 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2292055-1
2292055-1
lmages are for reference only.Payment Methods
Delivery Services

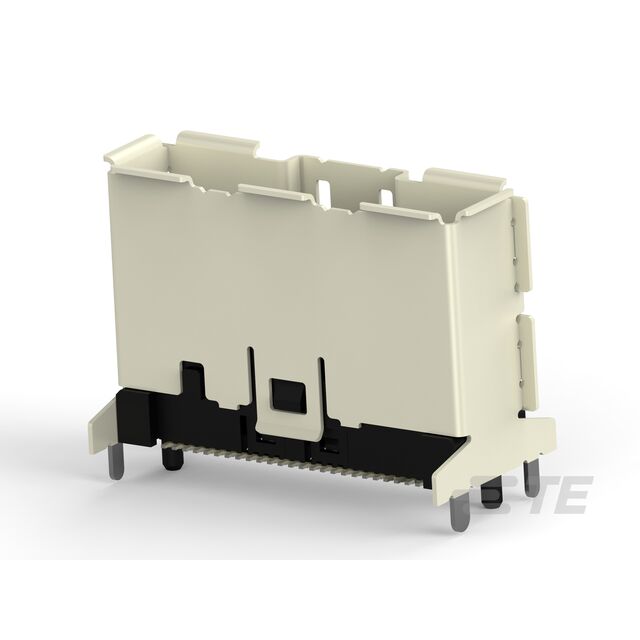

50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount, Right Angle Gold
Quick Inquiry
2292055-1
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Arrays-Edge Type-Mezzanine Board to Board |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 50 |
| Pitch | 0.024" (0.60mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount, Right Angle |
| Features | Board Guide, Shielded, Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | - |
| Height Above Board | 0.260" (6.60mm) |
| Base Product Number | 2292055 |
