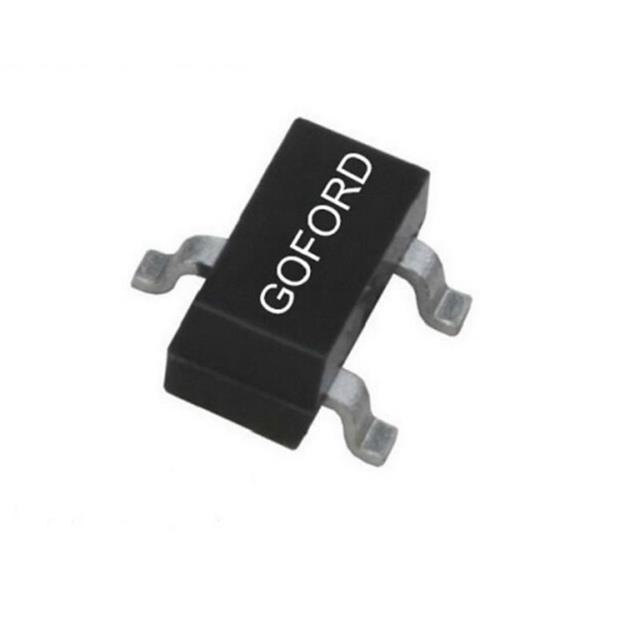

MOSFET N-CH 20V 4.3A SOT-23
DatasheetTO-236-3, SC-59, SOT-23-3
78,367 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 4.3A (Tc) 1W (Tc) Surface Mount SOT-23-3
2302
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 2.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 356 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | 2300F | 2301 | 2301H | 2N7002 |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Shenzhen Slkormicro Semicon Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | N20V, 6A,RD<27M@4.5V,VTH0.5V~0.9 | P20V,RD(MAX)<56M@-4.5V,RD(MAX)<8 | P30V,RD(MAX)<130M@-4.5V,RD(MAX)< | 60V 115MA 7.5@10V,500MA 225MW N |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
