231-237/001-000/105-604/997-409

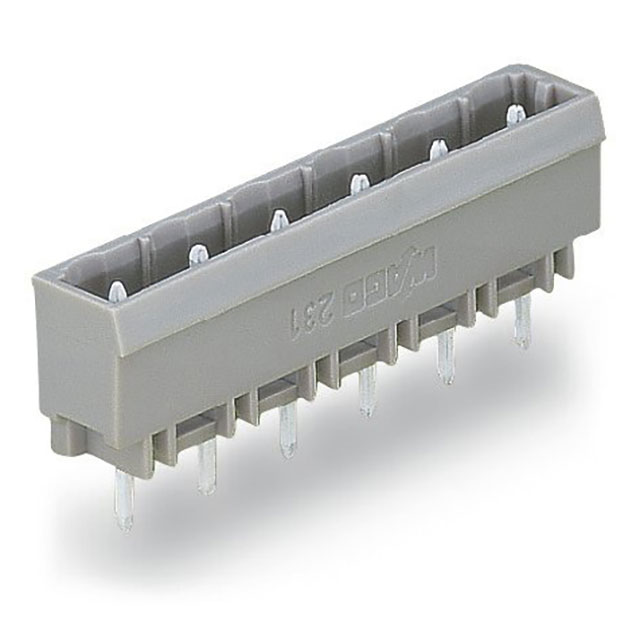

lmages are for reference only.231-237/001-000/105-604/997-409
THR MALE HEADER; 1.0 X 1.0 MM SO
Datasheet-
24,056 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) Vertical Through Hole
231-237/001-000/105-604/997-409
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WAGO Corporation |
| Series | MCSMIDI Classic |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Number of Levels | 1 |
| Pitch | 0.295" (7.50mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 12A |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -60°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Electrolytic Copper |
| Housing Material | Polyphthalamide (PPA), Glass Filled |
| Contact Tail Length | 0.094" (2.40mm) |
| Insulation Height | 0.472" (12.00mm) |
| Current - UL | 10 A |
| Voltage - UL | 600 V |
| Product Attribute |  |
 |
 |
 |
| Part Number | 231-237/001-000 | 231-102/008-000 | 231-102/026-000 | 231-102/031-000 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THT MALE HEADER; 1.0 X 1.0 MM SO | 1-CONDUCTOR FEMALE PLUG; SNAP-IN | 1-CONDUCTOR FEMALE PLUG; 2.5 MM; | 1-CONDUCTOR FEMALE PLUG; CLAMPIN |
| Series | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic |
| Packaging | Box | Box | Box | Box |
