Product CatalogPart Number
232-240
Manufacturer
WAGO CorporationDescription
THT FEMALE HEADER; 0.6 X 1.0 MM
Datasheet
DatasheetPackage
-
In Stock
43,487 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
232-240
232-240
lmages are for reference only.Payment Methods
Delivery Services
10 Position Terminal Block Header, Female Sockets 0.197" (5.00mm) 90°, Right Angle Through Hole
Quick Inquiry
232-240
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WAGO Corporation |
| Series | MCSMIDI Classic |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Header, Female Sockets |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Gray |
| Operating Temperature | -60°C ~ 85°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.197" (5.00mm) |
| Insulation Height | 0.457" (11.60mm) |
| Current - UL | 15 A |
| Voltage - UL | 600 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

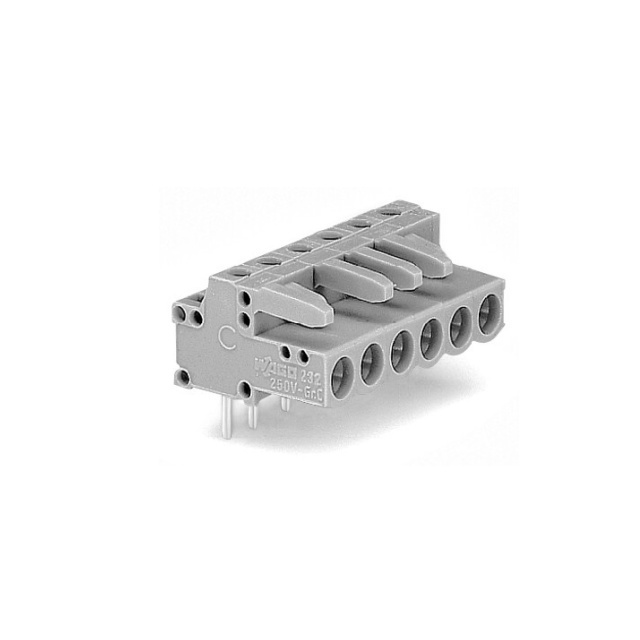

| Part Number | 232-240/005-000 | 232-240/005-000/039-000 | 232-240/031-000 | 232-241 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FEMALE CONNECTOR FOR RAIL-MOUNT | FEMALE CONNECTOR FOR RAIL-MOUNT | THT FEMALE HEADER; 0.6 X 1.0 MM | THT FEMALE HEADER; 0.6 X 1.0 MM |
| Series | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
232-202/026-000
WAGO Corporation
232-203/026-000
WAGO Corporation
232-204/026-000
WAGO Corporation

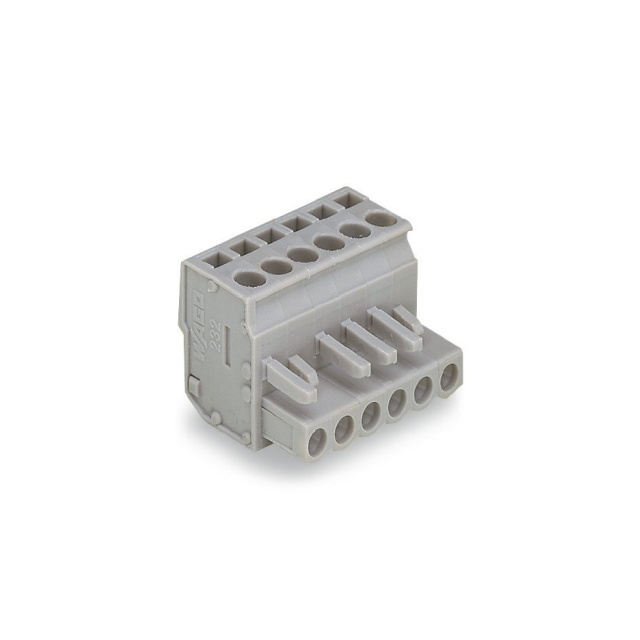

232-205/026-000
