Product CatalogPart Number
240NQ040-1
Manufacturer
SMC Diode SolutionsDescription
DIODE SCHOTTKY 40V 240A PRM1-1
Datasheet
DatasheetPackage
HALF-PAK
In Stock
96,422 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
240NQ040-1
240NQ040-1
lmages are for reference only.Payment Methods
Delivery Services

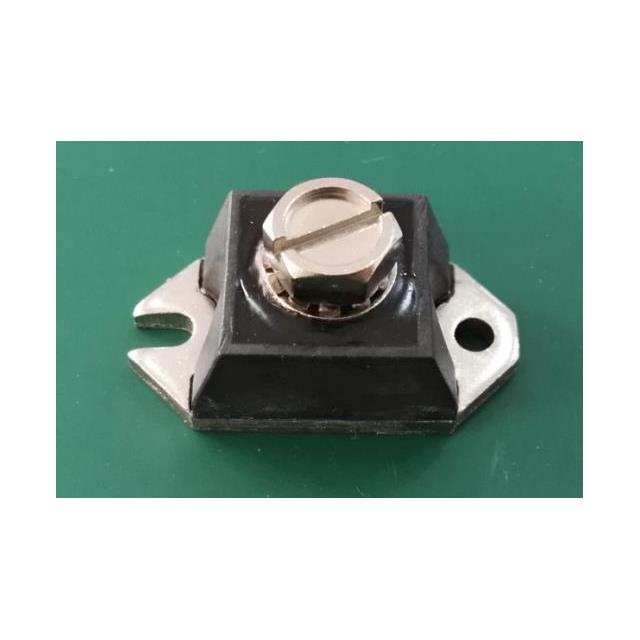

Diode 40 V 240A Chassis Mount PRM1-1 (Half Pak Module)
Quick Inquiry
240NQ040-1
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 240A |
| Voltage - Forward (Vf) (Max) @ If | 610 mV @ 240 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 20 mA @ 40 V |
| Capacitance @ Vr, F | 10300pF @ 5V, 1MHz |
| Mounting Type | Chassis Mount |
| Package / Case | HALF-PAK |
| Supplier Device Package | PRM1-1 (Half Pak Module) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | 240NQ |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | 240NQ040 | 240NQ045 | 240NQ045-1 | 240NQ045R |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 40V 240A D-67 | DIODE SCHOTTKY 45V 240A D-67 | DIODE SCHOTTKY 45V PRM1-1 | DIODE SCHOTTKY 45V 240A D-67 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
