2425754-1
lmages are for reference only.2425754-1
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet-
55,137 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Through Hole
2425754-1
| Category | Switches - Tactile Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 7.30mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 12.00mm x 12.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 260gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -40°C ~ 90°C |
| Actuator Material | Polyphthalamide (PPA) |
| Switch Travel | 0.30mm |
| Mechanical Life | 10,000,000 Cycles |
| Base Product Number | 2425754 |
| Product Attribute |  |
 |
 |
 |

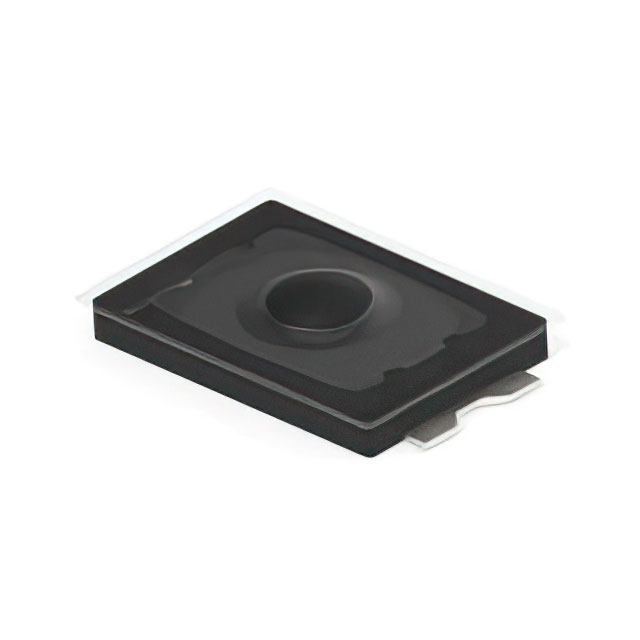

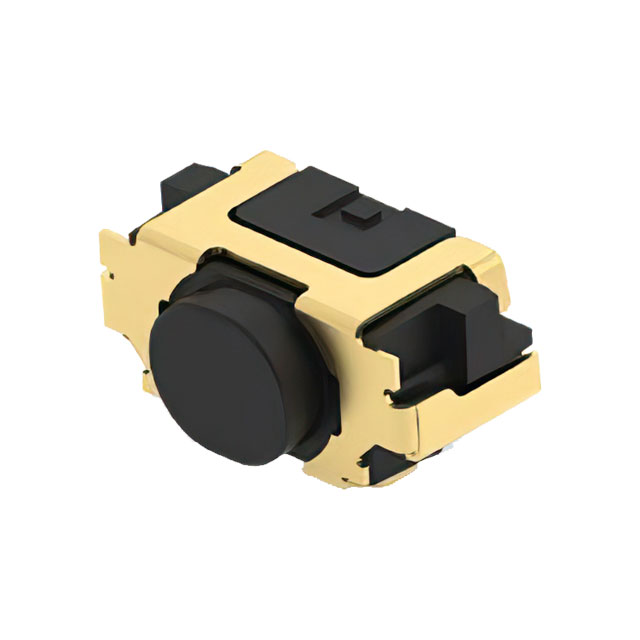

| Part Number | 2425578-1 | 2425753-1 | 2425753-2 | ATEMRRCVTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | APEM Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.02A 15V | SWITCH TACTILE SPST-NO 0.02A 15V | SWITCH TACTILE |
| Series | - | - | - | ATE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Cut Tape (CT)--> |
