2450FM07A0035001T
lmages are for reference only.2450FM07A0035001T
RF FILTER LOW PASS 2.45GHZ 0402
Datasheet0402 (1005 Metric), 4 PC Pad
107,850 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.45GHz Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.75dB 0402 (1005 Metric), 4 PC Pad
2450FM07A0035001T
| Category | Filters - RF Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.45GHz |
| Bandwidth | 100MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.75dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height (Max) | 0.016" (0.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

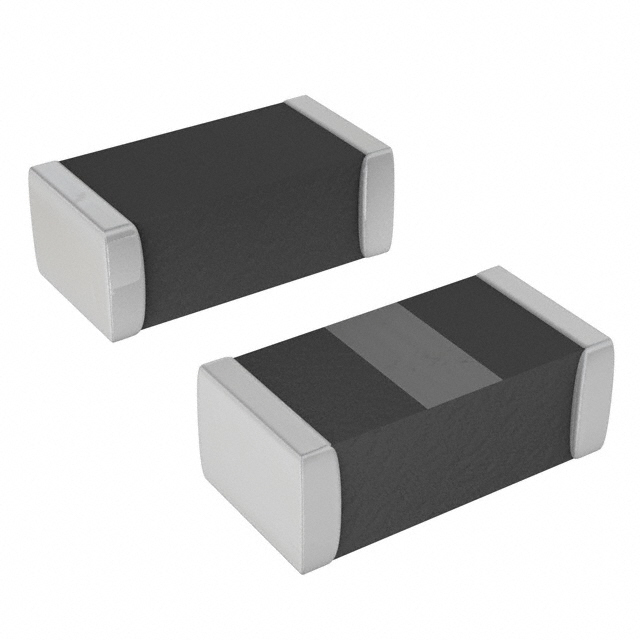

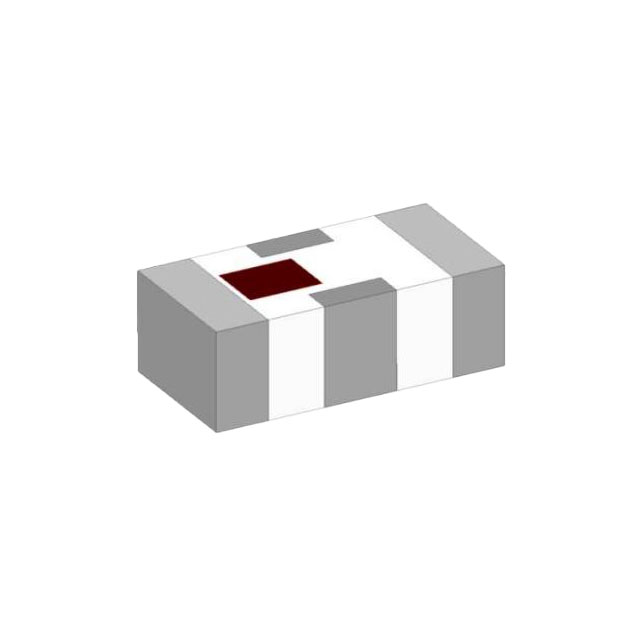

| Part Number | 2450FM07A0029001T | 2450FM05A0045001T | 2450FM07B0037001T | 2450FM07C0041001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTR LO PASS 2.4-2.5GHZ 0402 | MATCHED FILTER, 2400-2482 MHZ, I | RF FILTER LOW PASS 2.45GHZ 0402 | MATCHED FILTER, 2400-2500 MHZ, I |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
