2450LP15A0050001E
lmages are for reference only.2450LP15A0050001E
RF FILTER LOW PASS 2.45GHZ 0805
Datasheet0805 (2012 Metric), 8 PC Pad
68,954 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.45GHz Center Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.5dB 0805 (2012 Metric), 8 PC Pad
2450LP15A0050001E
| Category | Filters - RF Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.45GHz Center |
| Bandwidth | 100MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 8 PC Pad |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

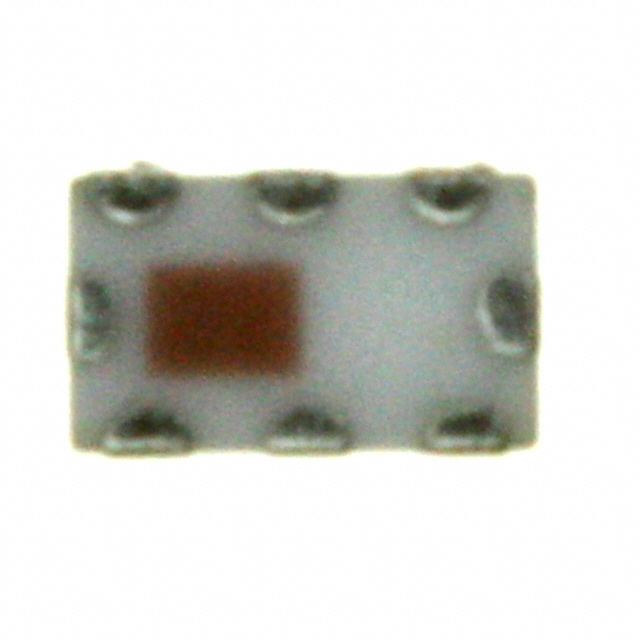

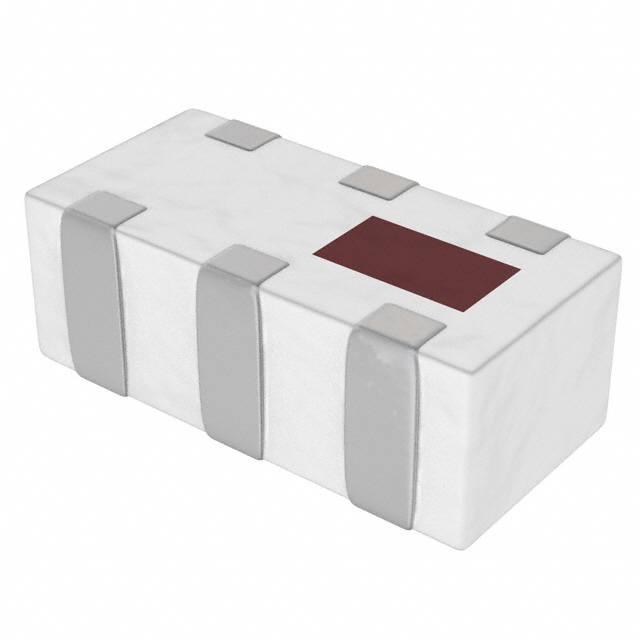

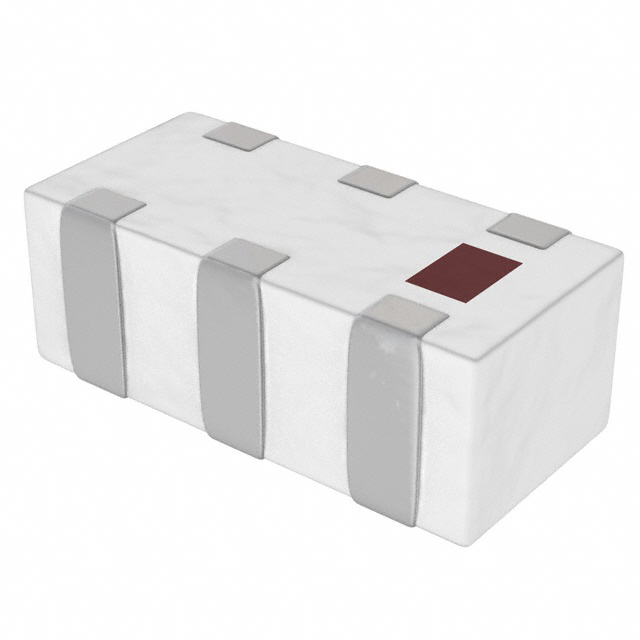

| Part Number | 2450LP14A0100001T | 2450LP14B0100001T | 2450LP15B0050001E | 2450BP39C0100001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 2.45GHZ 0603 | RF FILTER LOW PASS 2.45GHZ 0603 | RF FILTER LOW PASS 2.45GHZ 0805 | RF FILTER BAND PASS 2.45GHZ 1008 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
