2499-003-X5W0-502P
lmages are for reference only.2499-003-X5W0-502P
CAP FEEDTHRU 5000PF 500V AXIAL
DatasheetAxial, Bushing
29,333 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5000 pF Feed Through Capacitor 500V 20 A Axial, Bushing
2499-003-X5W0-502P
| Category | Filters - Feed Through Capacitors - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2499 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Tolerance | 0%, +100% |
| Voltage - Rated | 500V |
| Current | 20 A |
| DC Resistance (DCR) (Max) | - |
| Operating Temperature | -55°C ~ 85°C |
| Insertion Loss | 30dB @ 100MHz |
| Temperature Coefficient | X5W |
| Ratings | - |
| Package / Case | Axial, Bushing |
| Size / Dimension | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) |
| Height (Max) | - |
| Thread Size | 12-28 |
| Capacitance | 5000 pF |
| Mounting Type | Chassis Mount |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

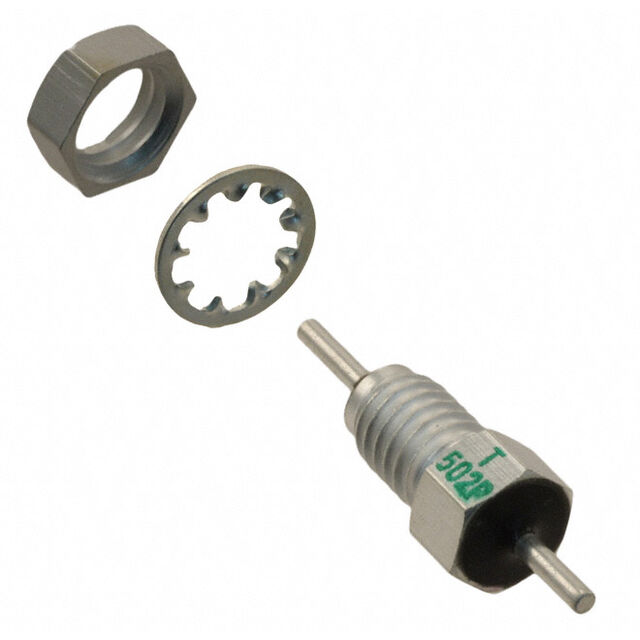

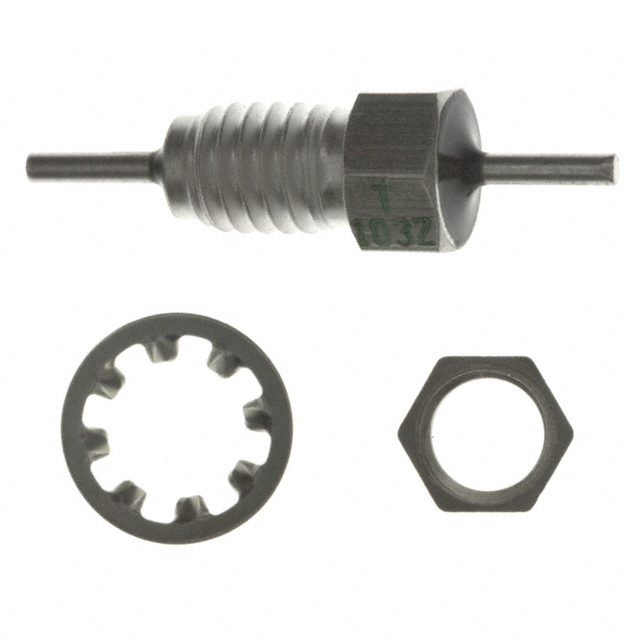

| Part Number | 2499-003-X5W0-103Z | 2499-003-X5W0-103ZLF | 2499-003-X5W0-502PLF | 2499-003-U2M0-101K |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CAP FEEDTHRU 0.01UF 500V AXIAL | CAP FEEDTHRU 0.01UF 500V AXIAL | CAP FEEDTHRU 5000PF 500V AXIAL | CAP FEEDTHRU 100PF 500V AXIAL |
| Series | 2499 | 2499 | 2499 | 2499 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
