24IMX70-12-0TG
lmages are for reference only.24IMX70-12-0TG
DC DC CONVERTER 12V 84W
Datasheet19-DIP Module, 17 Leads
97,877 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module, Conformal Coated DC DC Converter 1 Output 12V 7A 15V - 33.6V Input
24IMX70-12-0TG
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher IMX70 (70W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 15V |
| Voltage - Input (Max) | 33.6V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 84 W |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, SCP |
| Operating Temperature | -40°C ~ 95°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 19-DIP Module, 17 Leads |
| Size / Dimension | 3.00" L x 2.50" W x 0.49" H (76.2mm x 63.5mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | 24IMX70 |
| Voltage - Isolation | 2.1 kV |
| Product Attribute |  |
|
 |
 |

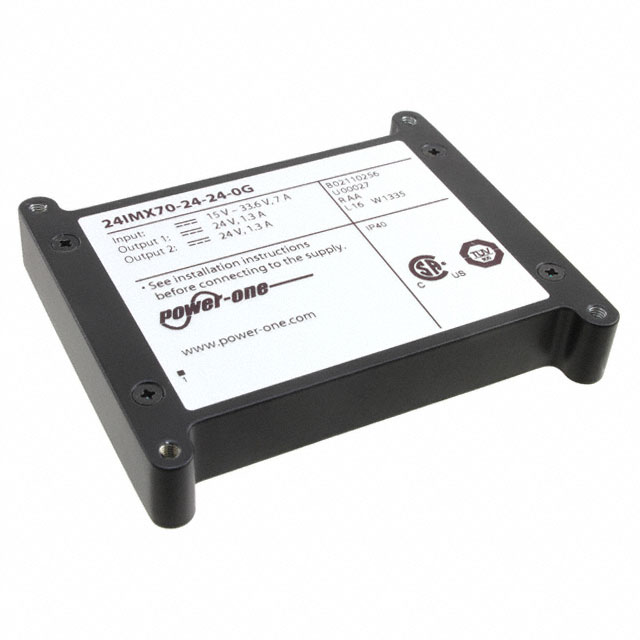

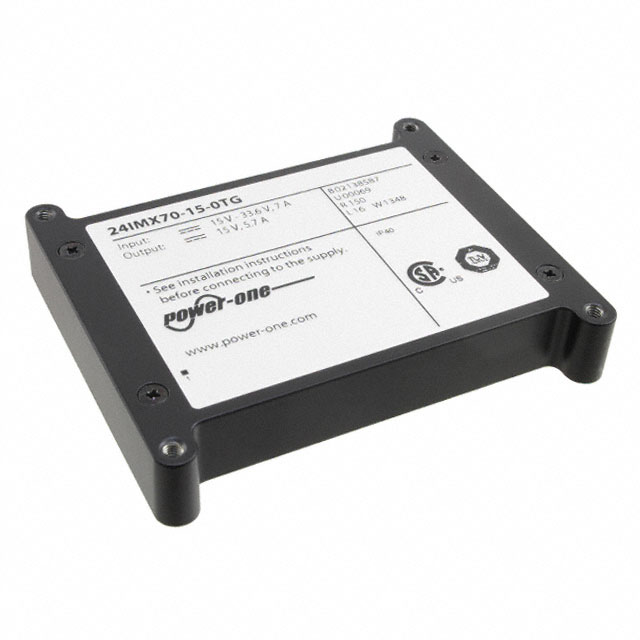

| Part Number | 24IMX70-12-0ITZG | 24IMX70-15-0ITG | 24IMX70-15-0TG | 24IMX70-24-24-0G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 84W | DC DC CONVERTER 15V 86W | DC DC CONVERTER 15V 90W | DC DC CONVERTER 24V 24V 70W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
