24PCCFG6G
lmages are for reference only.24PCCFG6G
SENSOR 15PSIC 0.14" .225V
Datasheet4-SIP Module
73,548 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±15PSI (±103.42kPa) Compound Male - 0.14" (3.56mm) Tube 0 mV ~ 225 mV (10V) 4-SIP Module
24PCCFG6G
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | 24PC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | 24PCCFG |
| Applications | Board Mount |
| Pressure Type | Compound |
| Operating Pressure | ±15PSI (±103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 225 mV (10V) |
| Accuracy | ±1% |
| Voltage - Supply | 10V ~ 12V |
| Port Size | Male - 0.14" (3.56mm) Tube |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | ±45PSI (±310.26kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | 24PCCFG6G | 24PCCFA2G | 24PCCFA3G | 24PCCFA6A |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

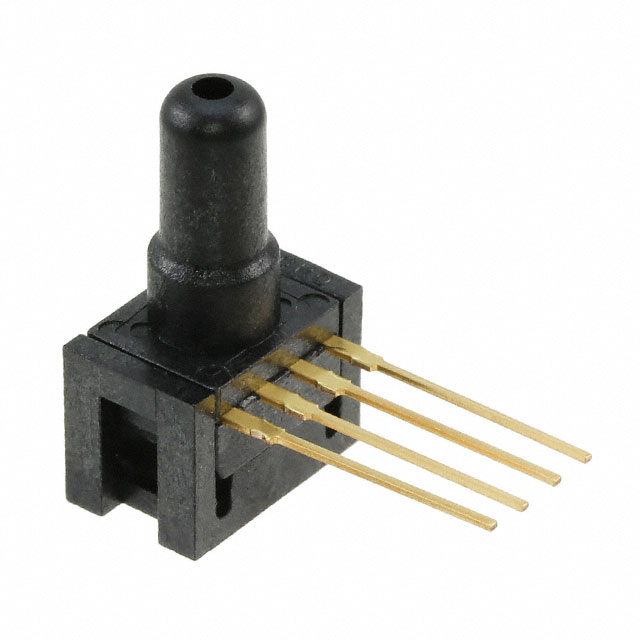

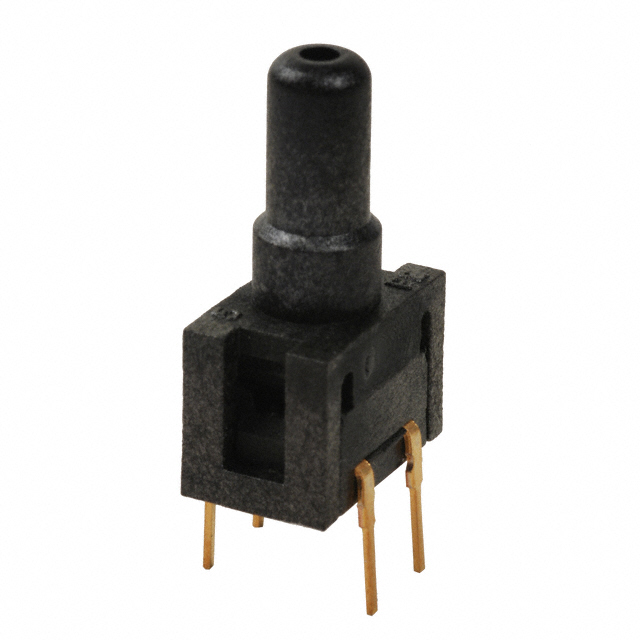

| Description | SENSOR 15PSIC 0.14" .225V | SENSOR 15PSIC 0.25" .225V | SENSOR 15PSIC 0.2" .225V 4SIP | SENSOR 15PSIA 0.2" |
| Series | 24PC | 24PC | 24PC | 24PC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
