Product CatalogPart Number
284414-6
Manufacturer
TE Connectivity AMP ConnectorsDescription
TERM BLK 6P TOP ENTRY 3.5MM PCB
Datasheet
DatasheetPackage
-
In Stock
74,824 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
284414-6
284414-6
lmages are for reference only.Payment Methods
Delivery Services
6 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Quick Inquiry
284414-6
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Buchanan |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 6 |
| Pitch | 0.138" (3.50mm) |
| Mating Orientation | Vertical with Board |
| Current | 12 A |
| Voltage | 300 V |
| Wire Gauge | 12-30 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) |
| Color | Green |
| Operating Temperature | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Brass - Nickel Plated |
| Torque - Screw | 0.25 Nm (2.2 Lb-In) |
| Screw Thread | M3 |
| Base Product Number | 284414 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 284414-2 | 284414-3 | 284414-4 | 284414-5 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLK 2P TOP ENTRY 3.5MM PCB | TERM BLK 3P TOP ENTRY 3.5MM PCB | TERM BLK 4P TOP ENTRY 3.5MM PCB | TERM BLK 5P TOP ENTRY 3.5MM PCB |
| Series | Buchanan | Buchanan | Buchanan | Buchanan |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

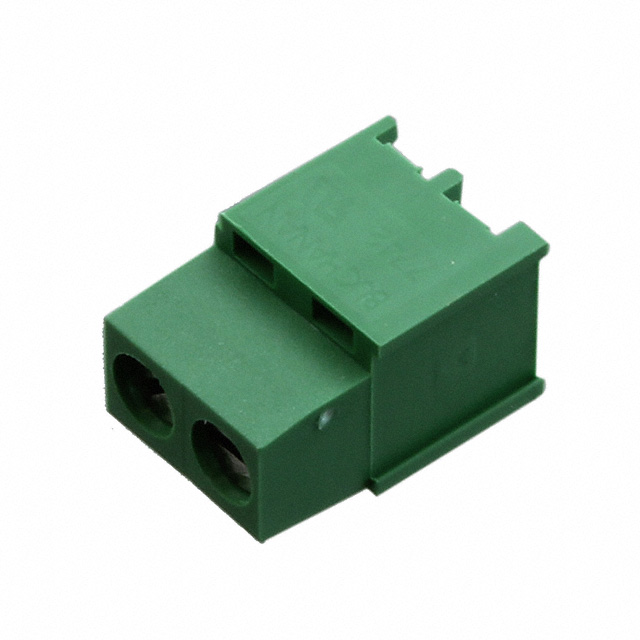

284410-2
TE Connectivity AMP Connectors

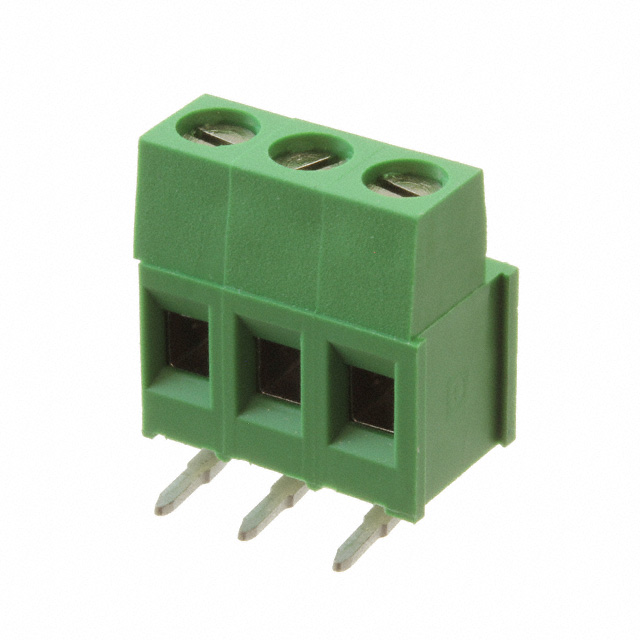

284410-3
TE Connectivity AMP Connectors

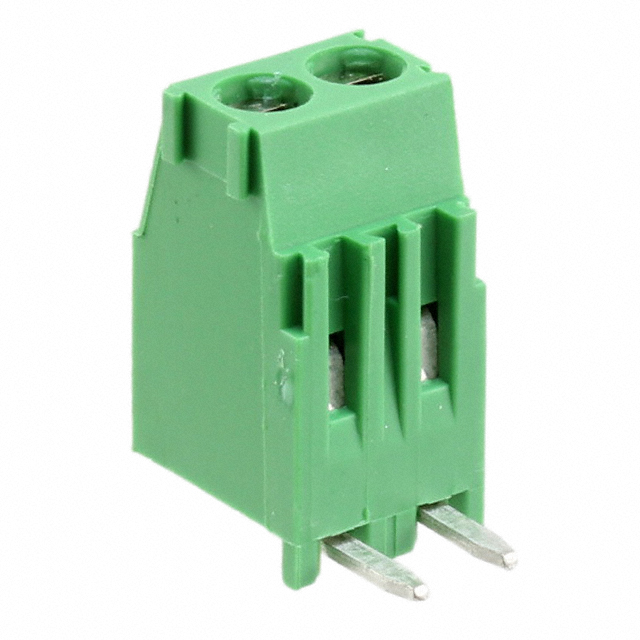

284414-2
TE Connectivity AMP Connectors

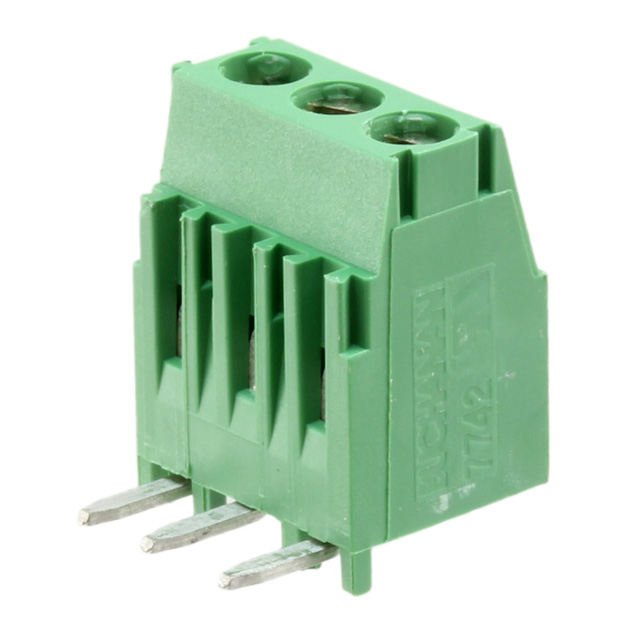

284414-3
TE Connectivity AMP Connectors

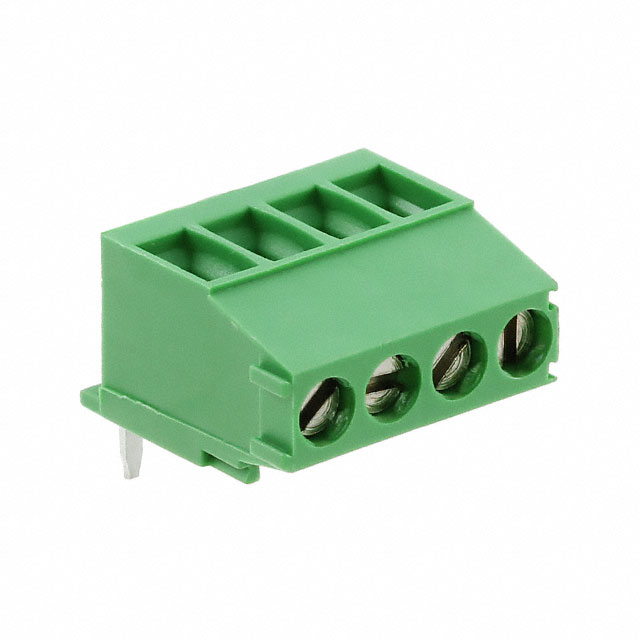

284414-4
TE Connectivity AMP Connectors

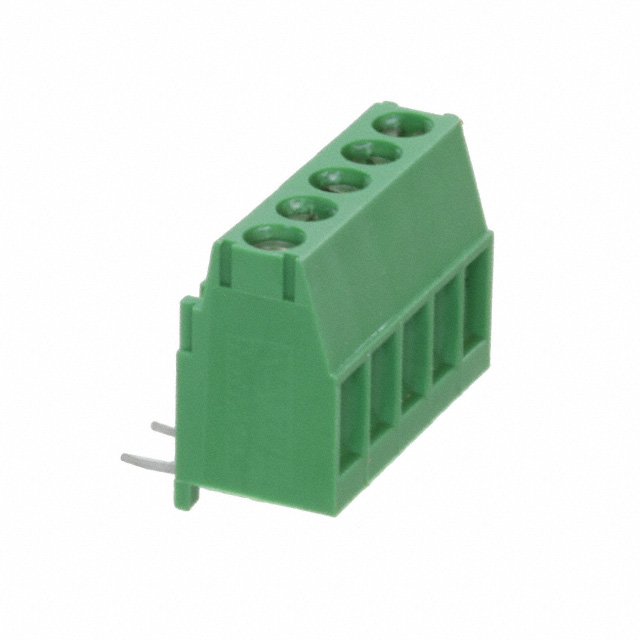

284414-5
TE Connectivity AMP Connectors

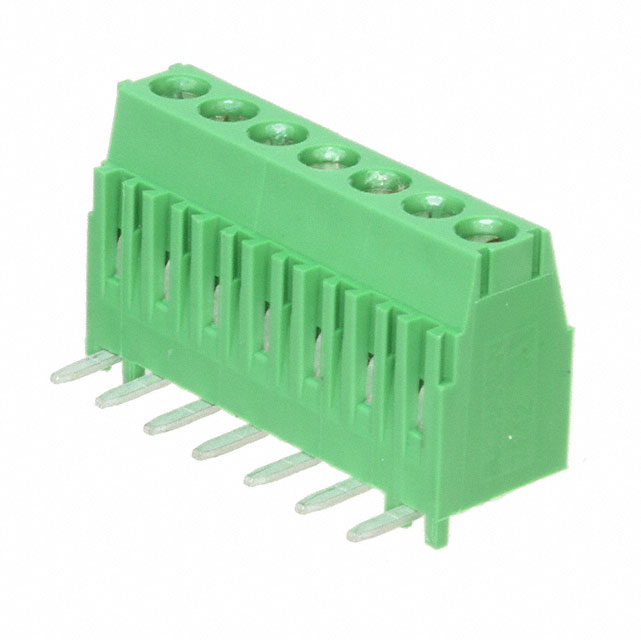

284414-7
TE Connectivity AMP Connectors

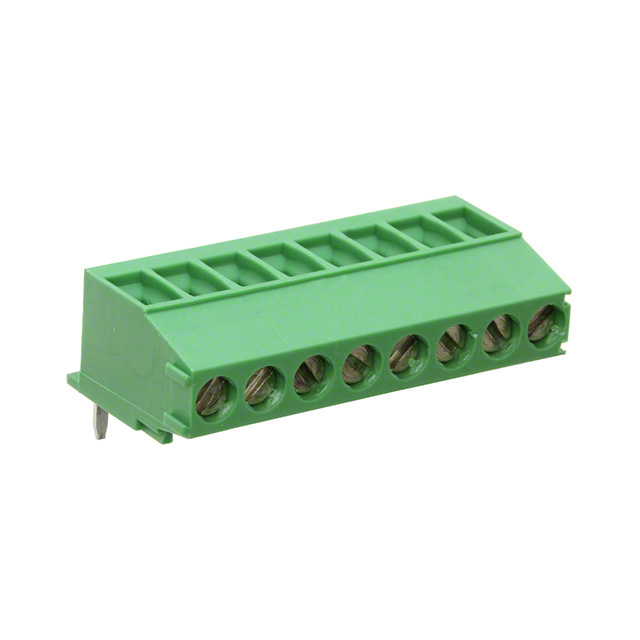

284414-8
TE Connectivity AMP Connectors

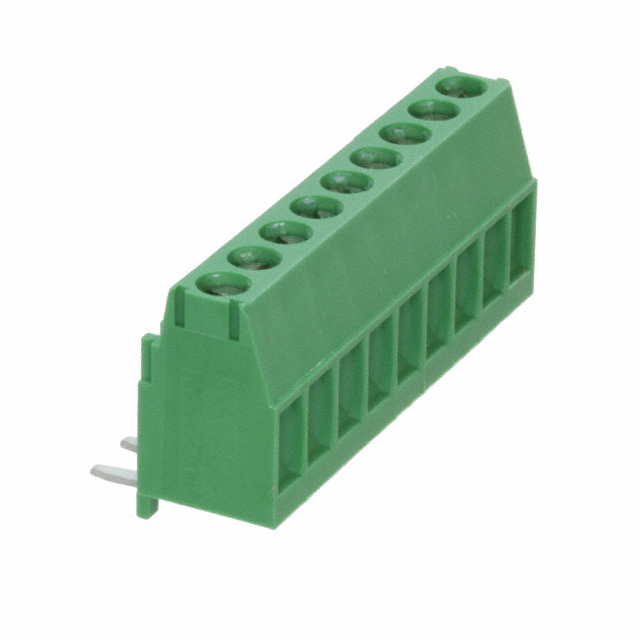

284414-9
TE Connectivity AMP Connectors
284415-2
TE Connectivity AMP Connectors

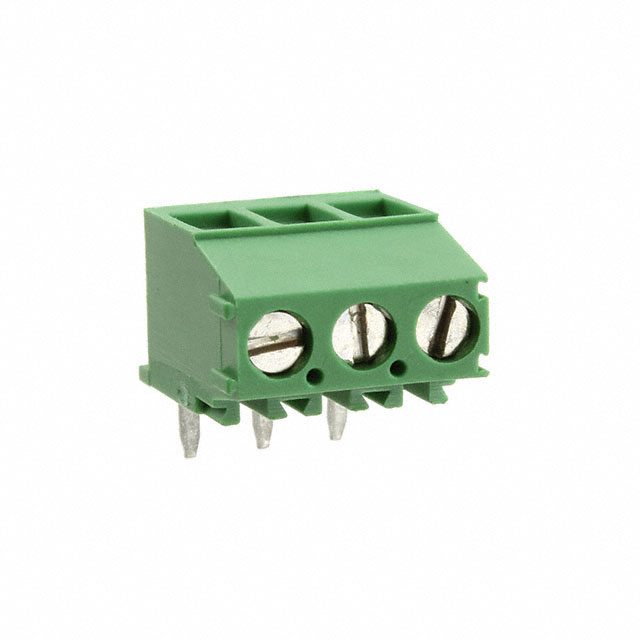

284415-3
TE Connectivity AMP Connectors

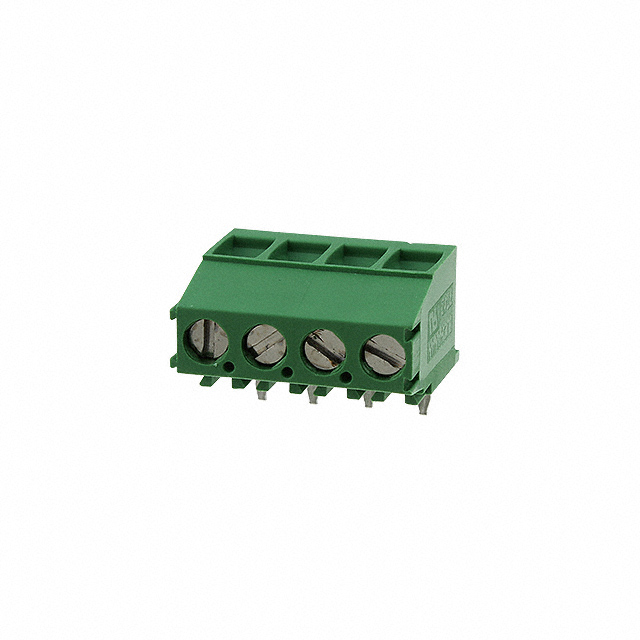

284415-4
TE Connectivity AMP Connectors

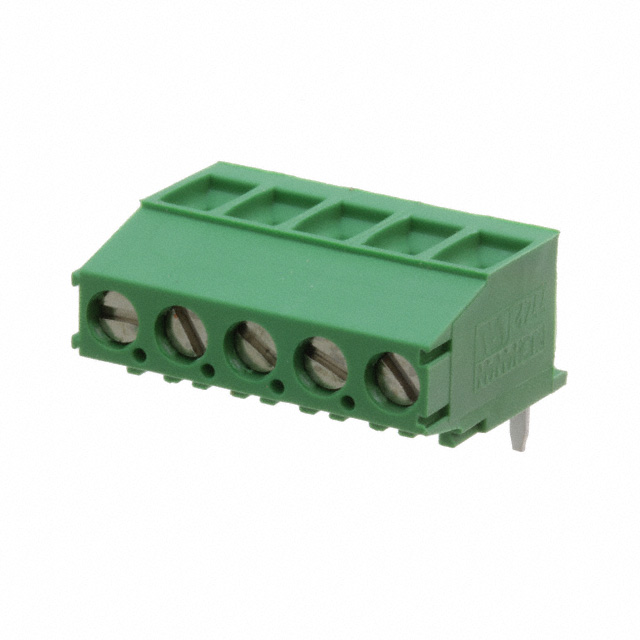

284415-5
TE Connectivity AMP Connectors

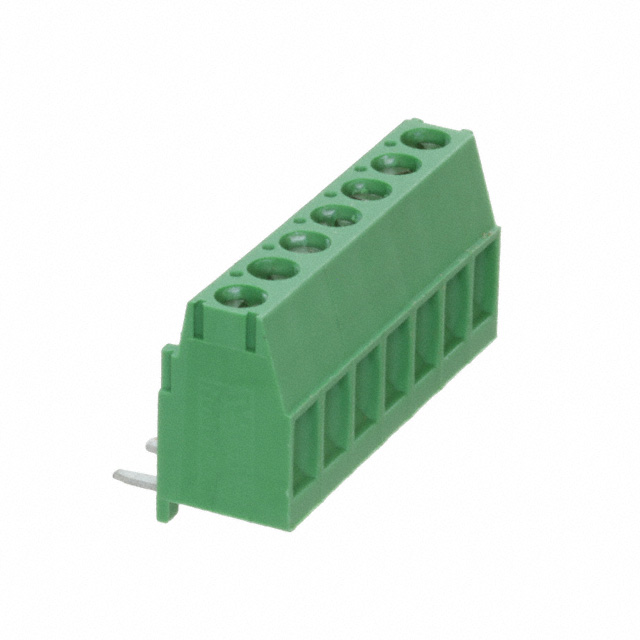

284415-7
TE Connectivity AMP Connectors

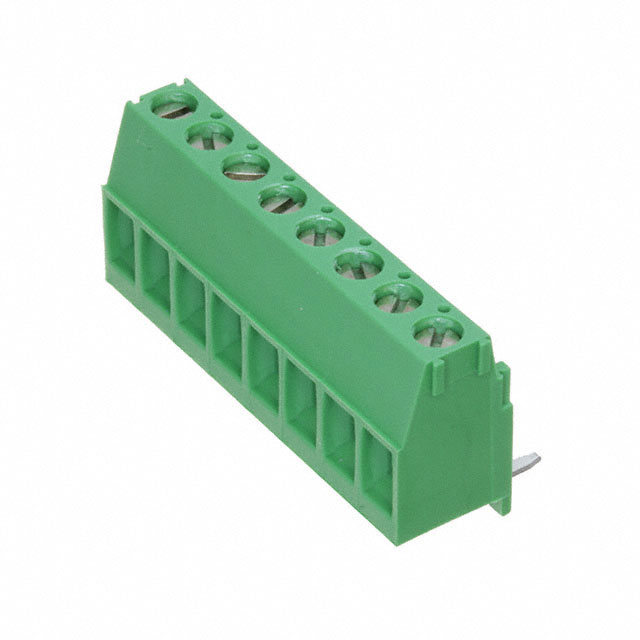

284415-8
TE Connectivity AMP Connectors

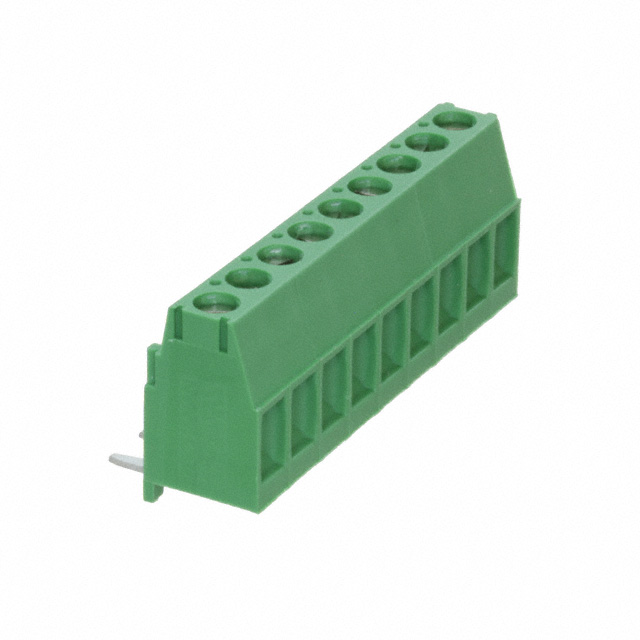

284415-9
