28L0138-20R
lmages are for reference only.28L0138-20R
FERRITE BEAD 97 OHM AXIAL 1LN
DatasheetAxial
36,794 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
97 Ohms @ 100 MHz 1 Ferrite Bead Axial 5A 10mOhm
28L0138-20R
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | 28 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Filter Type | - |
| Number of Lines | 1 |
| Impedance @ Frequency | 97 Ohms @ 100 MHz |
| Current Rating (Max) | 5A |
| DC Resistance (DCR) (Max) | 10mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Axial |
| Mounting Type | Through Hole |
| Height (Max) | - |
| Size / Dimension | - |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

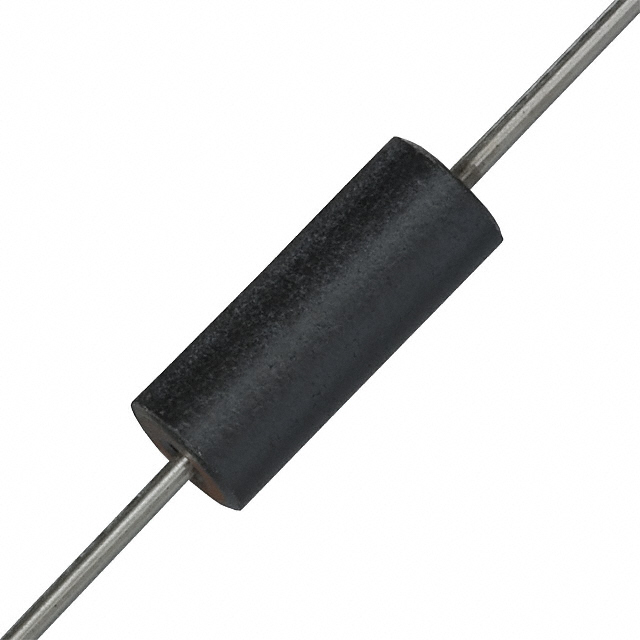

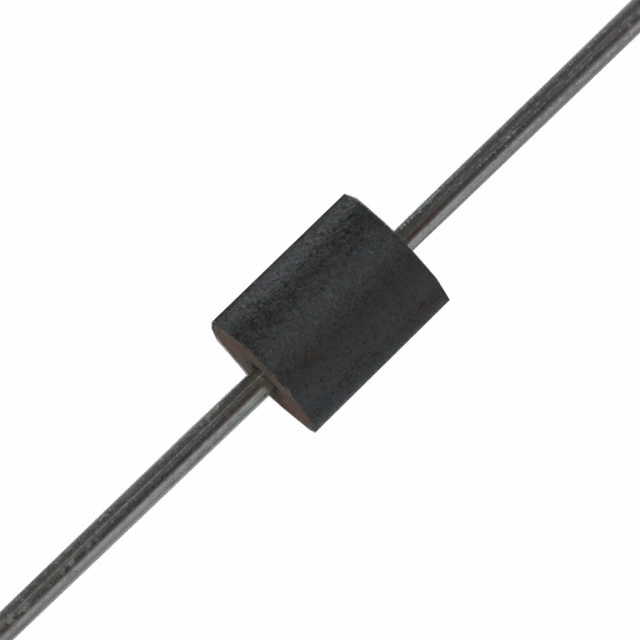

| Part Number | 28L0138-10R | 28L0138-10R-10 | 28L0138-40R | 28L0138-40R-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 75 OHM AXIAL 1LN | FERRITE BEAD 75 OHM AXIAL 1LN | FERRITE BEAD 135 OHM AXIAL 1LN | FERRITE BEAD 135 OHM AXIAL 1LN |
| Series | 28 | 28L0138 | 28 | 28L0138 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
