29-213-12

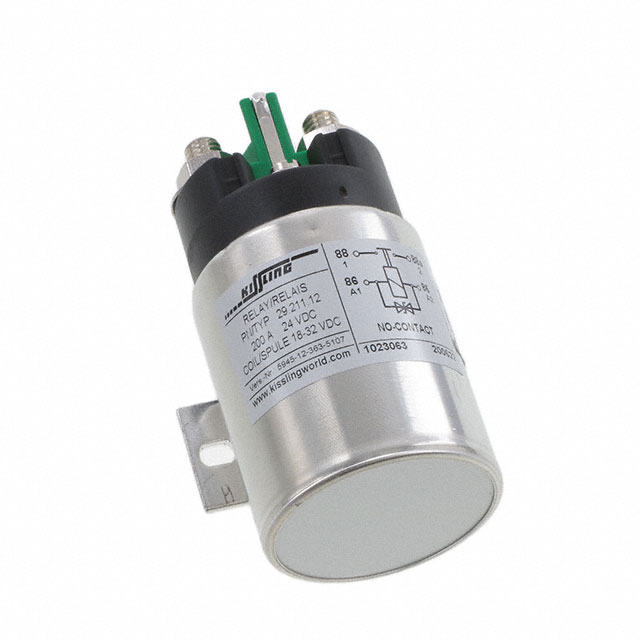

lmages are for reference only.29-213-12
RELAY GEN PURPOSE SPST 200A 28V
Datasheet-
64,059 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (DM) (1 Form X) 28VDC Coil Chassis Mount
29-213-12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 29, KISSLING |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 200 A |
| Switching Voltage | - |
| Load - Max Switching | 10W |
| Coil Current | 451.6 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 4 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 62 Ohms |
| Base Product Number | 29-213 |
| Product Attribute | |
|
|
 |
| Part Number | 29-213-11 | 29-011-11 | 29-011-11A | 29-011-12 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | |||
| Description | RELAY GEN PURPOSE SPST 200A 12V | RELAY GEN PURPOSE SPST 75A 12V | RELAY GEN PURPOSE SPST 75A 12V | RELAY GEN PURPOSE SPST 75A |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Bulk | Box | Bulk | Box |
