293D226X96R3B2TE3

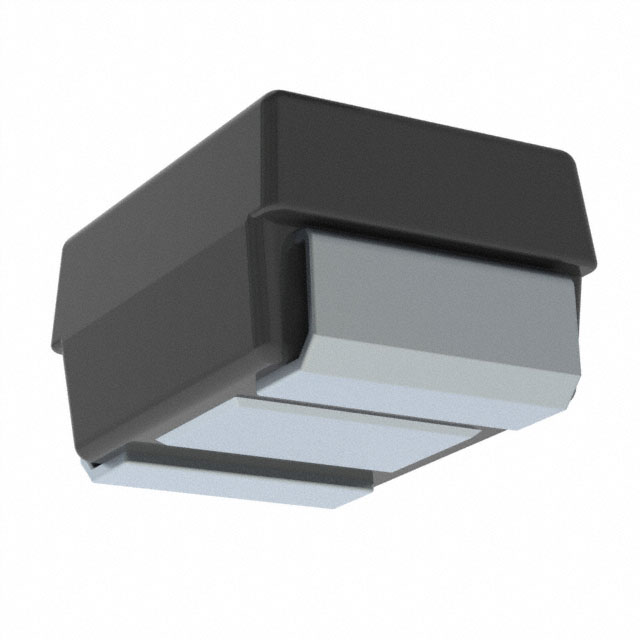

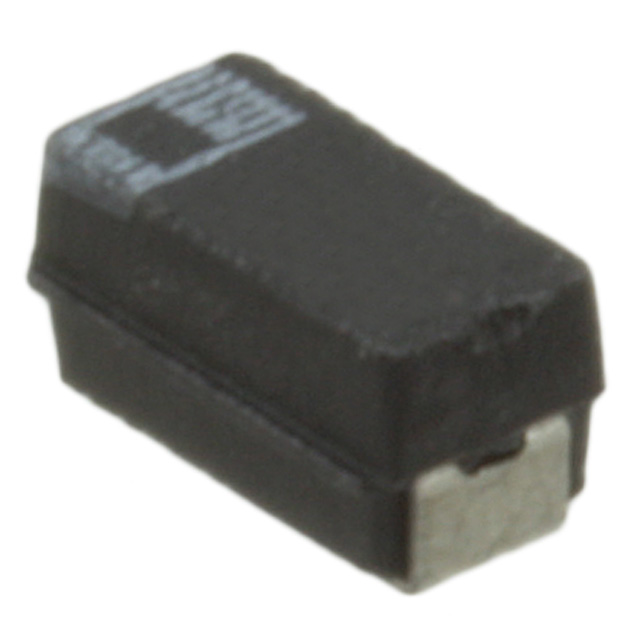

lmages are for reference only.293D226X96R3B2TE3
CAP TANT 22UF 10% 6.3V 1411
Datasheet1411 (3528 Metric)
83,101 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µF Molded Tantalum Capacitors 6.3 V 1411 (3528 Metric) 2Ohm
293D226X96R3B2TE3
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | TANTAMOUNT™, 293D |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 µF |
| Tolerance | ±10% |
| Voltage - Rated | 6.3 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 2Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.11mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 293D226X96R3A2TE3 | 293D226X96R3B8T | 293D226X96R3C2TE3 | 293D226X0004A2TE3 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 22UF 10% 6.3V 1206 | 293D226X96R3B8T | CAP TANT 22UF 10% 6.3V 2312 | CAP TANT 22UF 20% 4V 1206 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
