Product CatalogPart Number
299-83-318-10-001101
Manufacturer
Preci-DipDescription
CONN IC DIP SOCKET 18POS GOLD
Datasheet
DatasheetPackage
-
In Stock
92,761 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
299-83-318-10-001101
299-83-318-10-001101
lmages are for reference only.Payment Methods
Delivery Services
18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
Quick Inquiry
299-83-318-10-001101
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Preci-Dip |
| Series | 299 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Brass |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.128" (3.24mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | 10mOhm |
| Base Product Number | 299-83 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 299-83-318-11-001101 | 299-83-210-10-001101 | 299-83-306-10-001101 | 299-83-306-11-001101 |
| Manufacturer | Preci-Dip | Preci-Dip | Preci-Dip | Preci-Dip |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN IC DIP SOCKET 18POS GOLD | CONN IC DIP SOCKET 10POS GOLD | CONN IC DIP SOCKET 6POS GOLD | CONN IC DIP SOCKET 6POS GOLD |
| Series | 299 | 299 | 299 | 299 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
299-83-210-10-001101
Preci-Dip
299-83-306-10-001101
Preci-Dip
299-83-306-11-001101
Preci-Dip
299-83-308-10-001101
Preci-Dip
299-83-308-11-001101
Preci-Dip
299-83-310-10-001101
Preci-Dip
299-83-310-11-001101
Preci-Dip
299-83-312-10-001101
Preci-Dip
299-83-312-11-001101
Preci-Dip
299-83-314-10-001101
Preci-Dip
299-83-314-11-001101
Preci-Dip
299-83-316-10-001101
Preci-Dip
299-83-316-11-001101
Preci-Dip
299-83-318-11-001101
Preci-Dip
299-83-320-10-001101
Preci-Dip
299-83-320-11-001101
Preci-Dip
299-83-324-10-001101
Preci-Dip

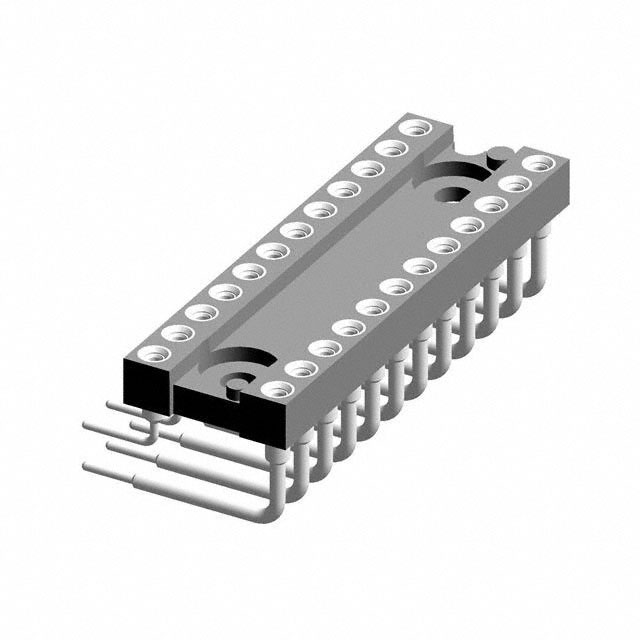

299-83-324-11-001101
