2DIB0401FXUMA1

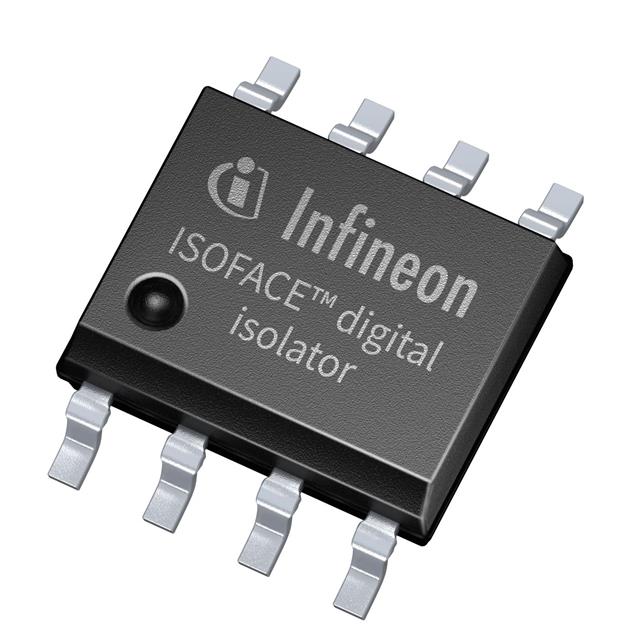

lmages are for reference only.2DIB0401FXUMA1
DIGITAL ISOLATORS
Datasheet8-SOIC (0.154", 3.90mm Width)
34,783 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 3000Vrms 2 Channel 40Mbps 100kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
2DIB0401FXUMA1
| Category | Isolators - Digital Isolators - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 40Mbps |
| Propagation Delay tpLH / tpHL (Max) | 33ns, 33ns |
| Pulse Width Distortion (Max) | 4ns |
| Rise / Fall Time (Typ) | 4ns, 4ns (Max) |
| Voltage - Supply | 2.7V ~ 6.5V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-8-82 |
| Base Product Number | 2DIB0401 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2DIB0400FXUMA1 | 2DIB0410FXUMA1 | 2DIB0411FXUMA1 | 2DIB1400FXUMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIGITAL ISOLATORS | DIGITAL ISOLATORS | DIGITAL ISOLATORS | DIGITAL ISOLATORS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
