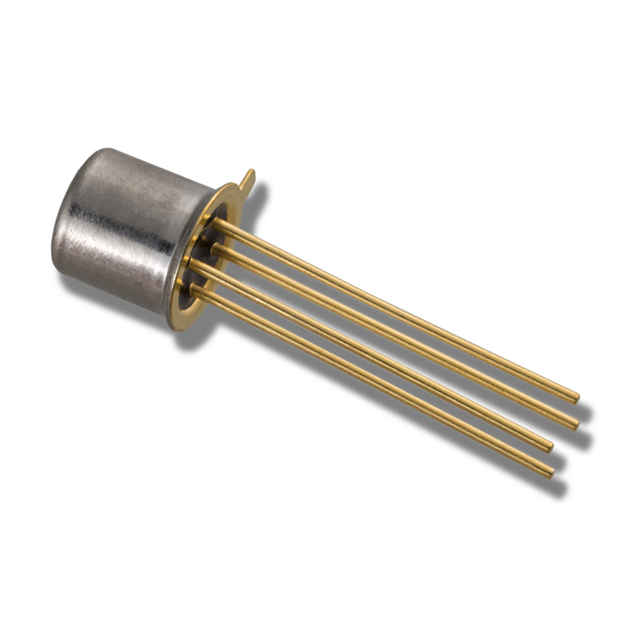

2N4117A TO-72 4L
lmages are for reference only.2N4117A TO-72 4L
JFET N-CH 40V TO72-4
DatasheetTO-206AF, TO-72-4 Metal Can
91,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
JFET N-Channel 40 V 300 mW Through Hole TO-72-4
2N4117A TO-72 4L
| Category | Discrete Semiconductor Products - Transistors - JFETs |
| Manufacturer | Linear Integrated Systems, Inc. |
| Series | 2N4117A |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | - |
| Current - Drain (Idss) @ Vds (Vgs=0) | 30 µA @ 10 V |
| Voltage - Cutoff (VGS off) @ Id | 600 mV @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 3pF @ 10V |
| Power - Max | 300 mW |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Supplier Device Package | TO-72-4 |
| Base Product Number | - |
| Resistance - RDS(On) | - |
| Current Drain (Id) - Max | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2N4117A | 2N4117A-2 | 2N4117A-E3 | 2N5485 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | JFET N-CH 40V TO206AF | JFET N-CH 40V TO206AF | JFET N-CH 40V TO206AF | JFET |
| Series | - | - | - | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
