Product CatalogPart Number
2SA1568
Manufacturer
Sanken Electric USA Inc.Description
TRANS PNP 60V 12A TO-220F
Datasheet
DatasheetPackage
TO-220-3 Full Pack
In Stock
76,229 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2SA1568
2SA1568
lmages are for reference only.Payment Methods
Delivery Services
Bipolar (BJT) Transistor PNP 60 V 12 A 40MHz 35 W Through Hole TO-220F
Quick Inquiry
2SA1568
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 350mV @ 300mA, 6A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 6A, 1V |
| Power - Max | 35 W |
| Frequency - Transition | 40MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

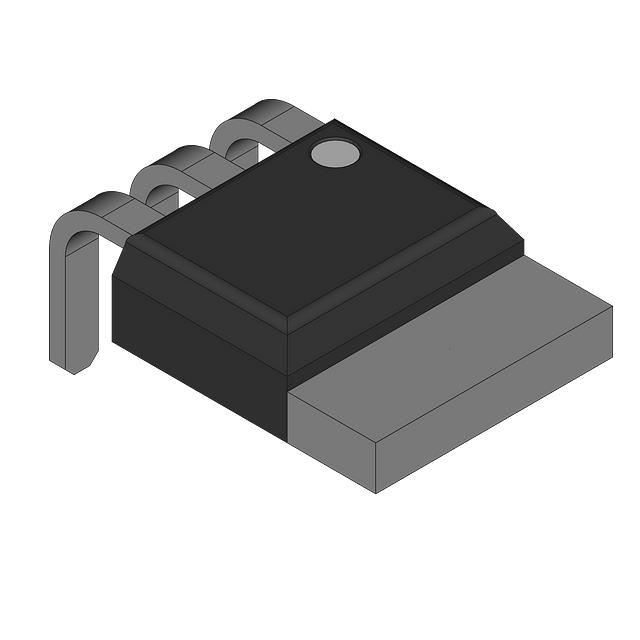

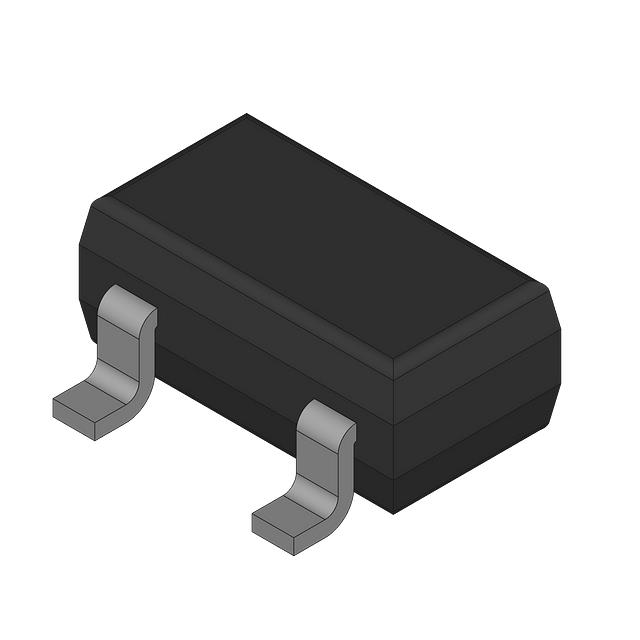

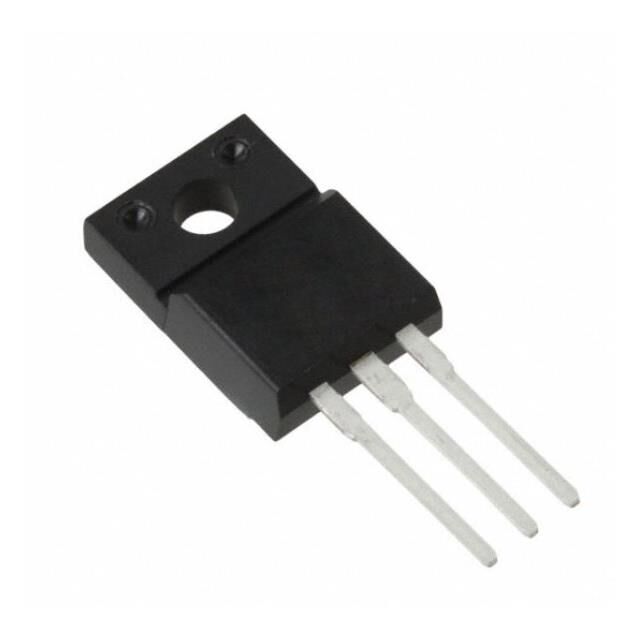

| Part Number | 2SA1562-E | 2SA1562-TL-E | 2SA1566JIETL-E | 2SA1567 |
| Manufacturer | onsemi | onsemi | Renesas Electronics Corporation | Sanken Electric USA Inc. |
| RoHS Status | Not applicable | Not applicable | ROHS3 Compliant | RoHS Compliant |
| Description | BIP PNP 1.2A 25V | BIP PNP 1.2A 25V | TRANS PNP 120V 0.1A 3-CMPAK | TRANS PNP 50V 12A TO-220F |
| Series | * | * | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
