2SC2712-O-TP

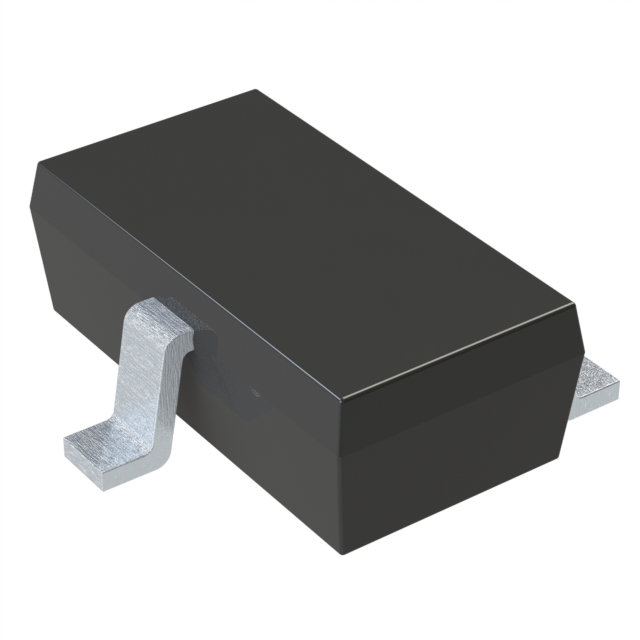

lmages are for reference only.2SC2712-O-TP
TRANS NPN 50V 0.15A SOT-23
DatasheetTO-236-3, SC-59, SOT-23-3
24,487 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor NPN 50 V 150 mA 80MHz 150 mW Surface Mount SOT-23
2SC2712-O-TP
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 2mA, 6V |
| Power - Max | 150 mW |
| Frequency - Transition | 80MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | 2SC2712 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 2SC2712-OTE85LF | 2SC2712-BL,LF | 2SC2712-BL,LXHF | 2SC2712-BL-TP |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANS NPN 50V 0.15A TO-236 | TRANS NPN 50V 0.15A S-MINI | TRANS NPN 50V 0.15A S-MINI | TRANS NPN 50V 0.15A SOT-23 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
Recommended Products
.jpg "2SC2705-O(TE6,F,M)")

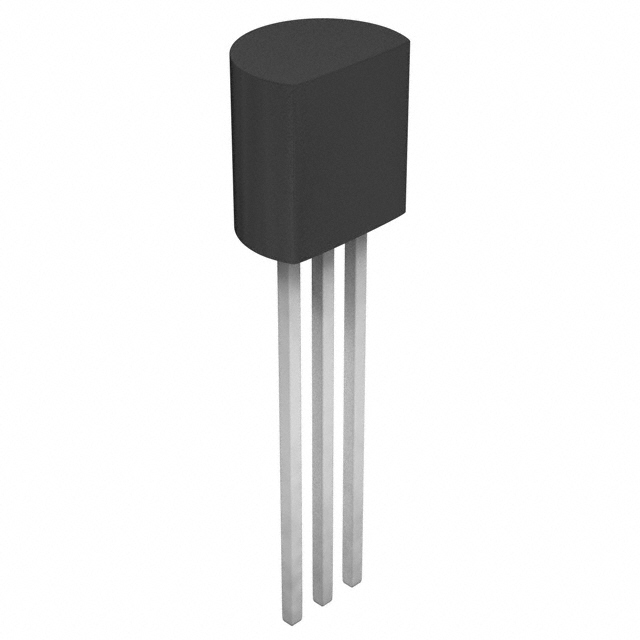

.jpg "2SC2705-O(TPE6,F)")
