2SJ0536G0L

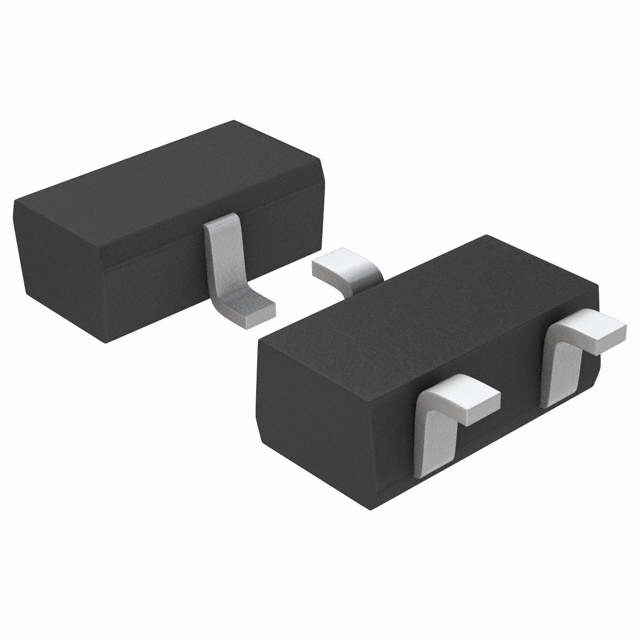

lmages are for reference only.2SJ0536G0L
MOSFET P-CH 30V 100MA SMINI3-F2
DatasheetSC-85
50,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 100mA (Ta) 150mW (Ta) Surface Mount SMini3-F2
2SJ0536G0L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 75Ohm @ 10mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 1µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMini3-F2 |
| Package / Case | SC-85 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2SJ053600L | 2SJ058200L | 2SJ067400L | 2SJ0674G0L |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | MOSFET P-CH 30V 100MA SMINI3-G1 | MOSFET P-CH 200V 2A U-G2 | MOSFET P-CH 30V 100MA SSSMINI3 | MOSFET P-CH 30V 100MA SSSMINI3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
