2SK2803
lmages are for reference only.2SK2803
MOSFET N-CH 450V 3A TO220F
DatasheetTO-220-3 Full Pack
63,492 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 450 V 3A (Ta) 30W (Tc) Through Hole TO-220F
2SK2803
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 450 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.8Ohm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 340 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
|
| Part Number | 2SK2009TE85LF | 2SK2010-CTV-YA14 | 2SK2011 | 2SK2034TE85LF |
| Manufacturer | Toshiba Semiconductor and Storage | onsemi | onsemi | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | |
| Description | MOSFET N-CH 30V 200MA SC59-3 | NCH 10V DRIVE SERIES | N-CHANNEL POWER MOSFET | MOSFET N-CH 20V 100MA SC70 |
| Series | - | * | * | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products
.jpg "2SK2845(TE16L1,Q)")

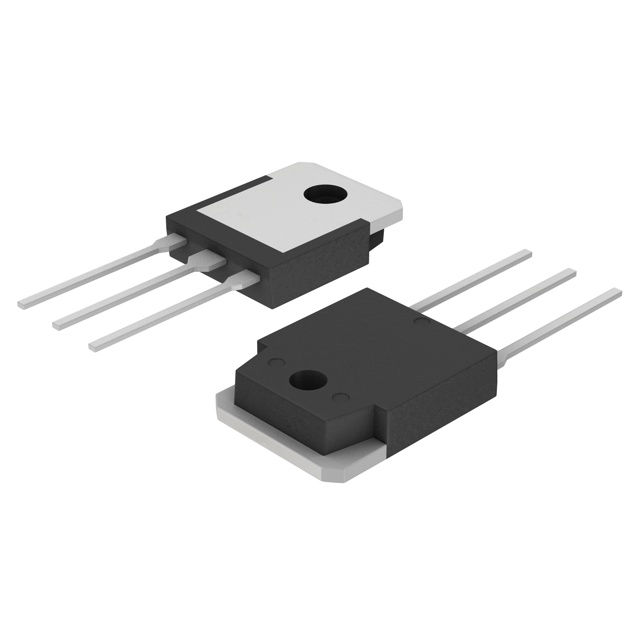

.jpg "2SK2847(F)")
