2SP0325T2A1-CM2500DY-24S

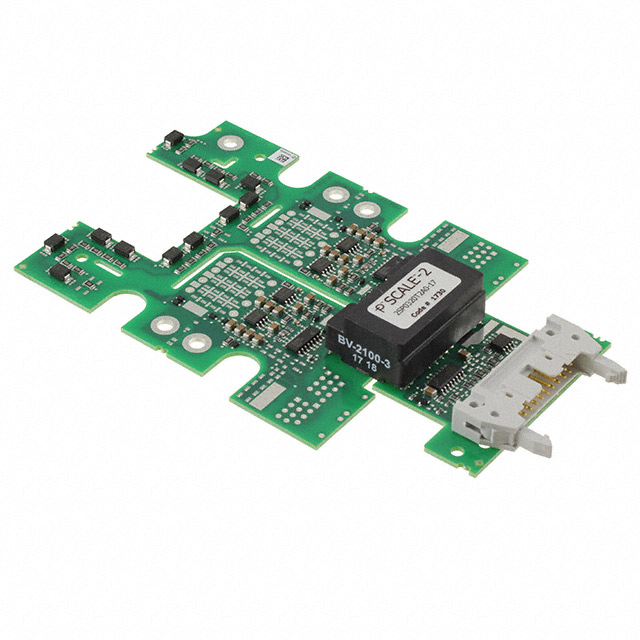

lmages are for reference only.2SP0325T2A1-CM2500DY-24S
IC GATE DRVR HALF-BRIDGE MODULE
DatasheetModule
69,077 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Module
2SP0325T2A1-CM2500DY-24S
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Power Integrations |
| Series | SCALE™-2 |
| Packaging | Tray |
| RoHS Status | Request inventory verification |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 14.5V ~ 15.5V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 25A, - |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 600ns, 750ns |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | 2SP0325 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | 2SP0325T2A1-CM1800DY-34S | 2SP0115T2A0-06 | 2SP0115T2A0-12 | 2SP0115T2A0-17 |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | Request inventory verification | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HALF-BRIDGE MODULE | IC GATE DRVR HALF-BRIDGE MODULE | IC GATE DRVR HALF-BRIDGE MODULE | IC GATE DRVR HALF-BRIDGE MODULE |
| Series | SCALE™-2 | SCALE™-2 | SCALE™-2 | SCALE™-2 |
| Packaging | Tray | Tray | Tray | Tray |
