Product CatalogPart Number
3.0SMCJ54CA
Manufacturer
SMC Diode SolutionsDescription
TVS DIODE 54VWM 87.1VC SMC
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
50,297 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3.0SMCJ54CA
3.0SMCJ54CA

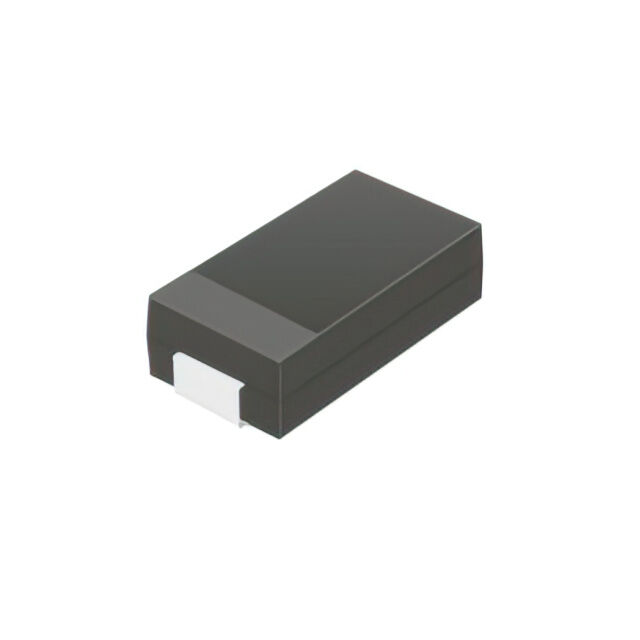

lmages are for reference only.Payment Methods
Delivery Services
87.1V Clamp 34.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Quick Inquiry
3.0SMCJ54CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 54V |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 87.1V |
| Current - Peak Pulse (10/1000µs) | 34.4A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | 3.0SMCJ54CA | 3.0SMCJ54CA | 3.0SMCJ54CA-HF | 3.0SMCJ54CAQ-13 |
| Manufacturer | Littelfuse Inc. | Diotec Semiconductor | Comchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIOD 3000W DO-214AB 54V | TVS DIODE 54VWM 87.1VC DO-214AB | DIODE TVS 54V 3000W SMC BI-DIR | LINEAR IC |
| Series | Littelfuse Inc. | Diotec Semiconductor | Comchip Technology | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
