3.0SMCJ78AQ-13

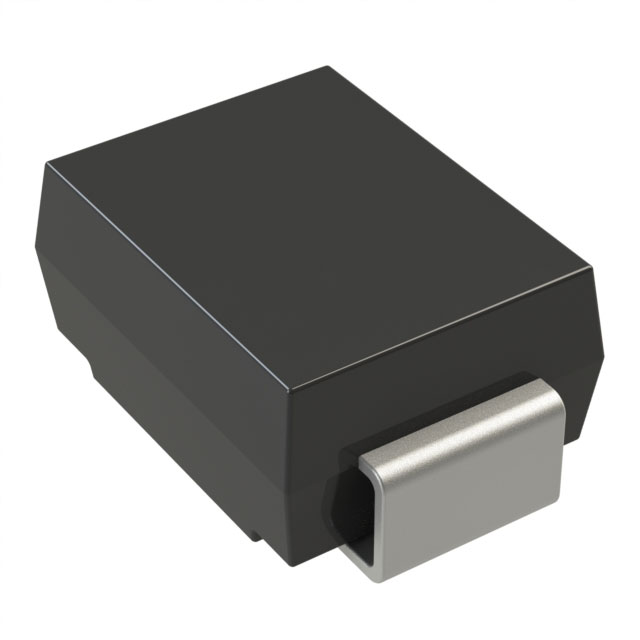

lmages are for reference only.3.0SMCJ78AQ-13
TRANSIENT VOLTAGE SUPPRESSOR SMC
DatasheetDO-214AB, SMC
18,284 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
126V Clamp 23.8A Ipp Tvs Diode Surface Mount SMC
3.0SMCJ78AQ-13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | 3.0SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 78V |
| Voltage - Breakdown (Min) | 86.7V |
| Voltage - Clamping (Max) @ Ipp | 126V |
| Current - Peak Pulse (10/1000µs) | 23.8A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
|
| Part Number | 3.0SMCJ7.0A | 3.0SMCJ7.0A | 3.0SMCJ7.0A-13 | 3.0SMCJ7.0A-HF |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 7VWM 12VC DO-214AB | TVS DIODE 7VWM 12VC SMC | TRANSIENT VOLTAGE SUPPRESSOR SMC | DIODE TVS 7V 3000W SMC UNI-DIR |
| Series | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
