Product CatalogPart Number
3.0SMCJ8.0A
Manufacturer
Diotec SemiconductorDescription
TVS DIODE 8VWM 13.6VC DO-214AB
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
16,320 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3.0SMCJ8.0A
3.0SMCJ8.0A

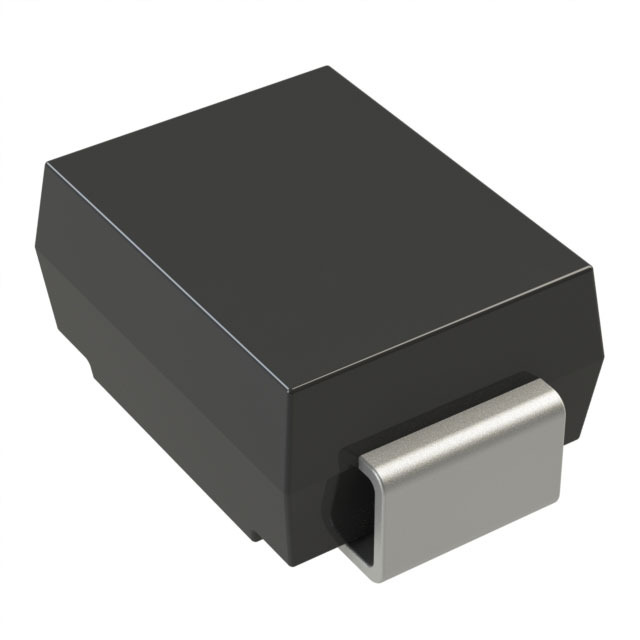

lmages are for reference only.Payment Methods
Delivery Services
13.6V Clamp 220.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Quick Inquiry
3.0SMCJ8.0A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8V |
| Voltage - Breakdown (Min) | 8.9V |
| Voltage - Clamping (Max) @ Ipp | 13.6V |
| Current - Peak Pulse (10/1000µs) | 220.5A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | 3.0SMCJ8.0A | 3.0SMCJ8.0A-13 | 3.0SMCJ8.0A-HF | 3.0SMCJ8.0AQ-13 |
| Manufacturer | SMC Diode Solutions | Diodes Incorporated | Comchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 8VWM 13.6VC SMC | TRANSIENT VOLTAGE SUPPRESSOR SMC | DIODE TVS 8V 3000W SMC UNI-DIR | TRANSIENT VOLTAGE SUPPRESSOR SMC |
| Series | SMC Diode Solutions | Diodes Incorporated | Comchip Technology | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
