3.0SMCJ9.0CA

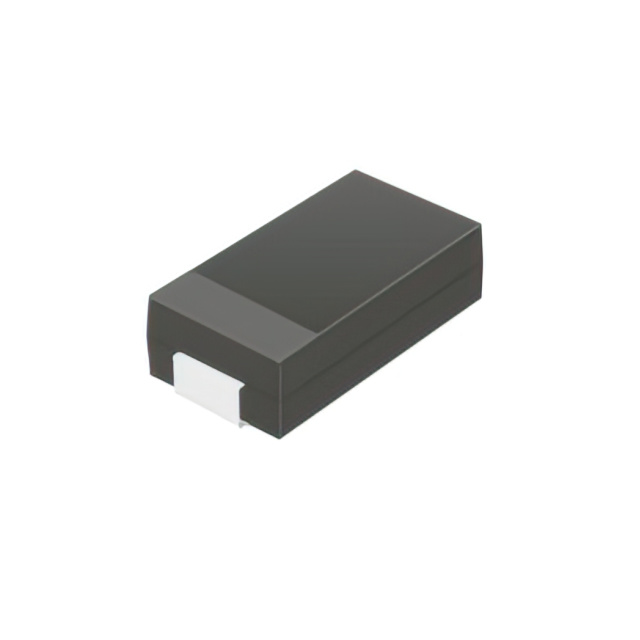

lmages are for reference only.3.0SMCJ9.0CA
TVS DIODE 9VWM 15.4VC DO-214AB
DatasheetDO-214AB, SMC
93,885 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15.4V Clamp 194.8A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ9.0CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 9V |
| Voltage - Breakdown (Min) | 10V |
| Voltage - Clamping (Max) @ Ipp | 15.4V |
| Current - Peak Pulse (10/1000µs) | 194.8A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | 3.0SMCJ9.0CA | 3.0SMCJ9.0CA | 3.0SMCJ9.0CA-13 | 3.0SMCJ9.0CA-HF |
| Manufacturer | Littelfuse Inc. | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIOD 3000W DO-214AB 9V | TVS DIODE 9VWM 15.4VC SMC | TRANSIENT VOLTAGE SUPPRESSOR SMC | DIODE TVS 9V 3000W SMC BI-DIR |
| Series | Littelfuse Inc. | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Recommended Products
| Delivery Time | In-stock items can be shipped within 24 hours. Some parts will be arranged for delivery within 1-2 days from the date all items arrive at our warehouse. And Orwintech ships order once a day at about 17:00, except Sunday. Once the goods are shipped, the estimated delivery time depends on the shipping methods and Delivery destination. The table below shows are the logistic time for some common countries. |
| Delivery Cost | Use your express account for shipment if you have one. Use our account for the shipment. Refer to the table below for the approximate charges. (Different time frame / countries / package size has different price.) |
| Delivery Method | Global Common Shipment by DHL / UPS / FedEx / TNT / EMS / SF we support. Others more shipping ways, please get in touch with us. |
| Region | Country | Logistic Time(Day) |
| America | United States | 5 |
| Brazil | 7 | |
| Europe | Germany | 5 |
| United Kingdom | 4 | |
| Ltaly | 5 | |
| Oceania | Australia | 6 |
| New Zealand | 5 | |
| Asia | India | 4 |
| Japan | 4 | |
| Middle East | Israel | 6 |
| Shipment charges(KG) | Reference DHL(USD$) |
| 0.00kg-1.00kg | USD$30.00 - USD$60.00 |
| 1.00kg-2.00kg | USD$40.00 - USD$80.00 |
| 2.00kg-3.00kg | USD$50.00 - USD$100 |
