3-1415410-9
lmages are for reference only.3-1415410-9
RELAY GEN PURPOSE SPST 16A 6V
Datasheet-
54,084 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
3-1415410-9
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | 41063, SCHRACK |
| Packaging | Tray |
| RoHS Status | Not applicable |
| Mounting Type | Through Hole |
| Coil Voltage | 6VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 60 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 3.6 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -20°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 100 Ohms |
| Base Product Number | 1415410 |
| Product Attribute |  |
 |
 |
 |

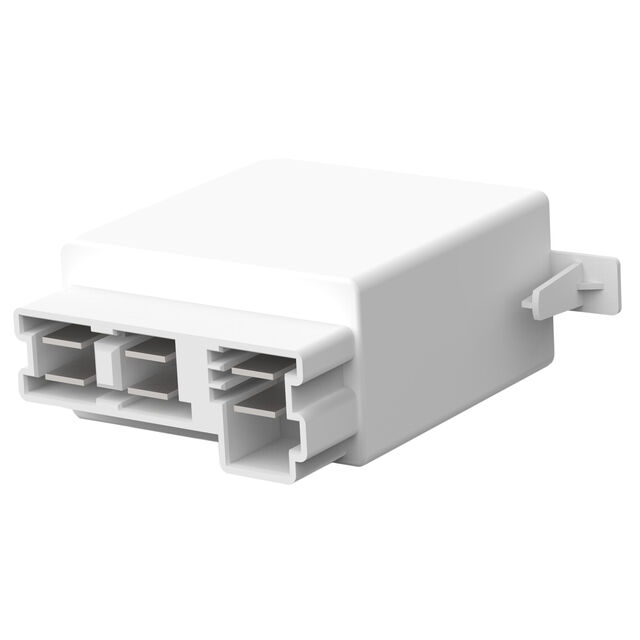

| Part Number | 3-1415410-0 | 3-1415410-4 | 3-1415419-5 | 3-1414974-4 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity AMP Connectors | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 16A 24V | RELAY GEN PURPOSE SPST 16A 12V | RELAY GEN PURPOSE DPST 16A 220V | V23086R1821A502-EV-USBX |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity AMP Connectors | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tray | Bulk | Box |
