3-1462039-3
lmages are for reference only.3-1462039-3
RELAY GEN PURPOSE DPDT 5A 5V
Datasheet-
91,347 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay DPDT (2 Form C) 5VDC Coil Surface Mount
3-1462039-3
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Cut Tape (CT)-->Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 62.5VA, 60W |
| Coil Current | 28.1 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Gull Wing |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | UR, VDE |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Coil Resistance | 178 Ohms |
| Base Product Number | 1462039 |
| Product Attribute |  |
 |
 |
|

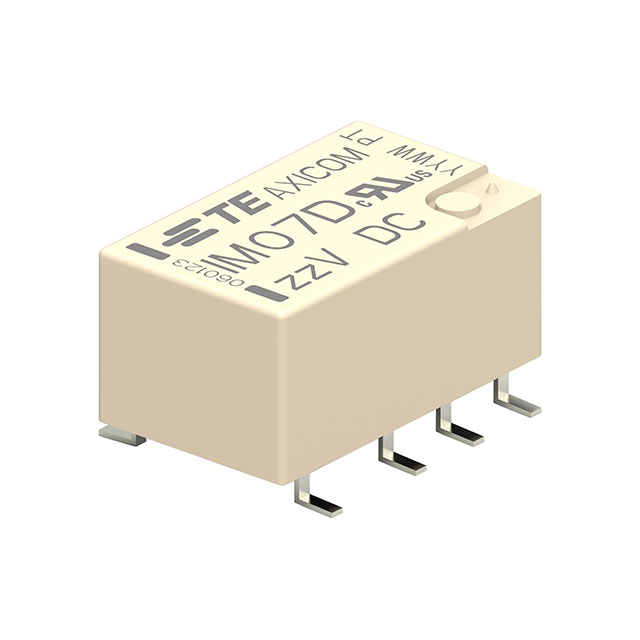

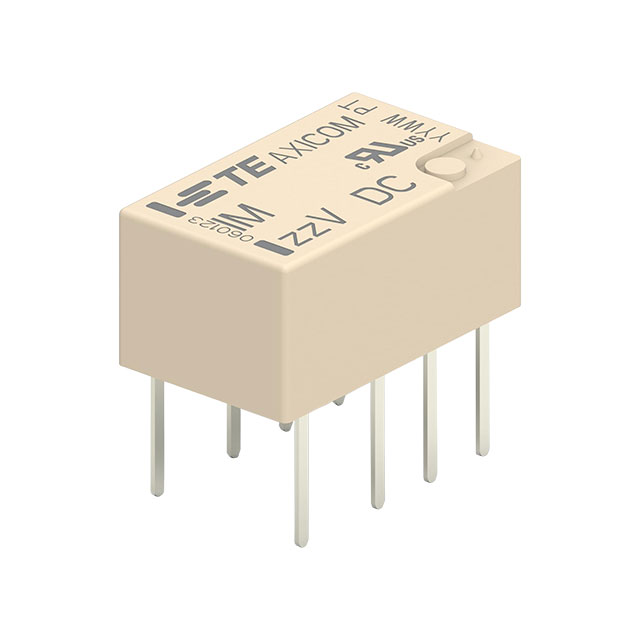

| Part Number | 3-1461491-6 | 3-1462039-7 | 3-1462039-8 | 3-1617752-9 |
| Manufacturer | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | Power/Signal Relay, 1 Form A, SP | RELAY TELECOM DPDT 5A 24V | RELAY TELECOM DPDT 5A 12V | FCA-215-BY4 |
| Series | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk |
