3-5435668-4
lmages are for reference only.3-5435668-4
SWITCH ROCKER DIP SPST 0.06A 5V
Datasheet-
58,195 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 4 Position Through Hole Rocker Actuator 60mA 5VDC
3-5435668-4
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | 7100 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 60mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rocker |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.290" (7.37mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -55°C ~ 105°C |
| Body Material | Polyester (PET), Glass Filled |
| Length | 0.480" (12.19mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | 5435668 |
| Product Attribute |  |
 |
 |
 |

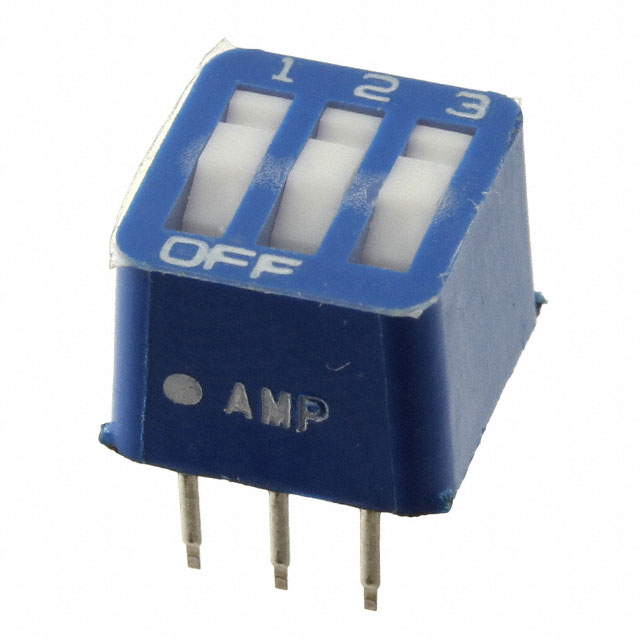

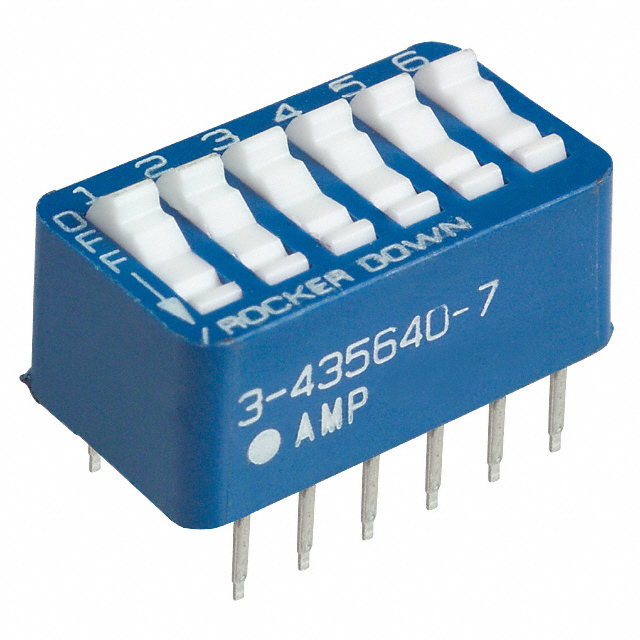

| Part Number | 3-5435668-0 | 3-5435668-3 | 3-5435668-5 | 3-5435640-0 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V |
| Series | 7100 | 7100 | 7100 | 7100 |
| Packaging | Tube | Tube | Tube | Tube |
