Product CatalogPart Number
30046-160T-F
Manufacturer
I-PEXDescription
MINIDOCK PLUG R/A SLIM 160P
Datasheet
DatasheetPackage
-
In Stock
58,806 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
30046-160T-F
30046-160T-F
lmages are for reference only.Payment Methods
Delivery Services
160 Position Male Connector Fits Female Edgecards Gold 0.025" (0.64mm) Black
Quick Inquiry
30046-160T-F
Specifications
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | I-PEX |
| Series | |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Series | MINIDOCK™ |
| Card Type | Fits Female Edgecards |
| Gender | Male |
| Number of Positions/Bay/Row | 80 |
| Number of Positions | 160 |
| Card Thickness | - |
| Number of Rows | 2 |
| Pitch | 0.025" (0.64mm) |
| Read Out | Dual |
| Features | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Contact Type | - |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -65°C ~ 85°C |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Base Product Number | - |
| Termination Rows | 4 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | 30056-160T-F | 301-120-520-201 | 301-184-520-201 | 302-004-221-201 |
| Manufacturer | I-PEX | EDAC Inc. | EDAC Inc. | EDAC Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

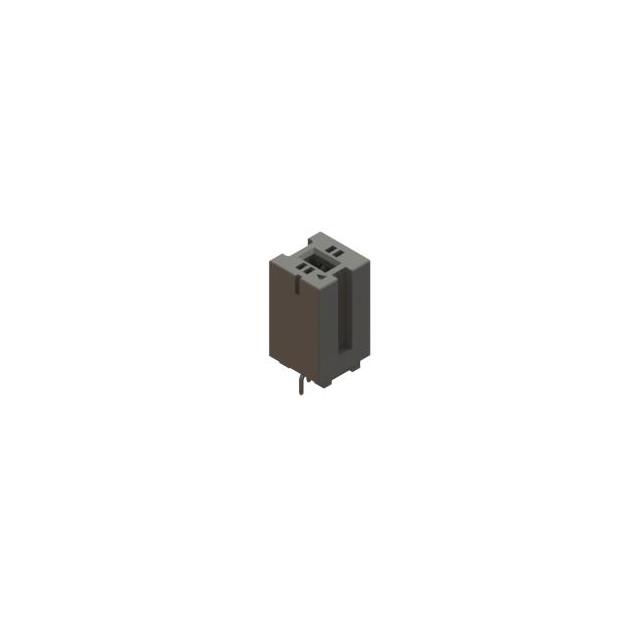

| Description | MINIDOCK RECE. VERTICAL SLIM 160 | CONN EDGE DUAL FML 120POS 0.050 | CONN EDGE DUAL FML 184POS 0.050 | 302 SERIES (.05" (1.27MM) CONTAC |
