Product CatalogPart Number
3006P-1-104Z
Manufacturer
Bourns Inc.Description
TRIMMER 100K OHM 0.75W PC PIN
Datasheet
DatasheetPackage
-
In Stock
29,800 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3006P-1-104Z
3006P-1-104Z
lmages are for reference only.Payment Methods
Delivery Services
100 kOhms 0.75W, 3/4W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Cermet 15.0 Turn Side Adjustment
Quick Inquiry
3006P-1-104Z
Specifications
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Bourns Inc. |
| Series | Trimpot® 3006 - Sealed |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Resistance | 100 kOhms |
| Power (Watts) | 0.75W, 3/4W |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 15.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
| Base Product Number | 3006P |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3006P-1-104 | 3006P-1-104LF | 3006P-1-104ZLF | 3006P-1-100 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TRIMMER 100K OHM 0.75W PC PIN | TRIMMER 100K OHM 0.75W PC PIN | TRIMMER 100K OHM 0.75W PC PIN | TRIMMER 10 OHM 0.75W PC PIN SIDE |
| Series | Trimpot® 3006 - Sealed | Trimpot® 3006 - Sealed | Trimpot® 3006 - Sealed | Trimpot® 3006 - Sealed |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
3006P-1-100
Bourns Inc.
3006P-1-100LF
Bourns Inc.
3006P-1-100ZLF
Bourns Inc.
3006P-1-101
Bourns Inc.

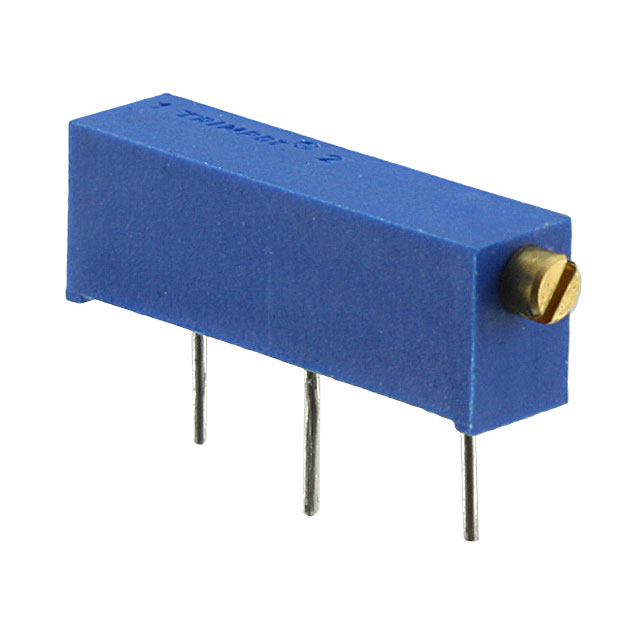

3006P-1-101LF
Bourns Inc.
3006P-1-101Z
Bourns Inc.
3006P-1-101ZLF
Bourns Inc.

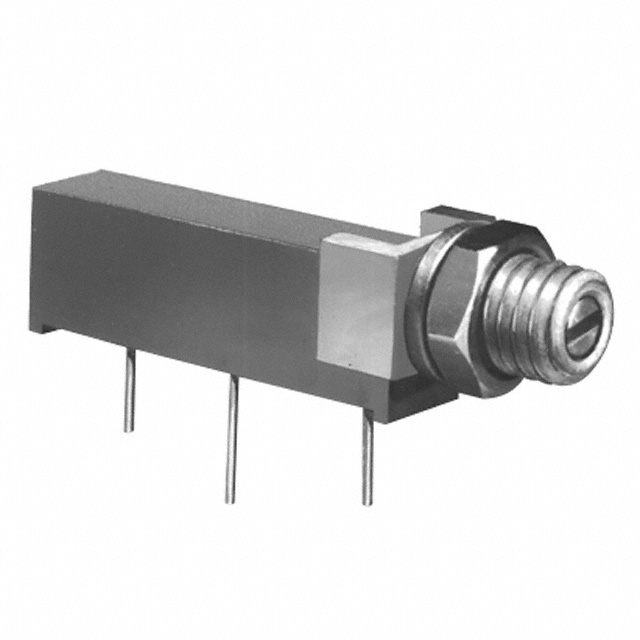

3006P-1-102
Bourns Inc.
3006P-1-102LF
Bourns Inc.

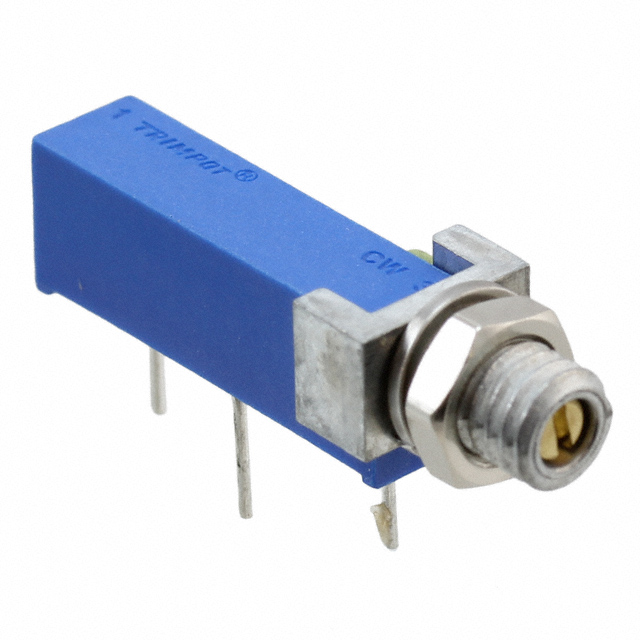

3006P-1-102Z
