301U140 G R BL
lmages are for reference only.301U140 G R BL
DIODE GEN PURP 1.4KV 300A DO205
DatasheetDO-205AB, DO-9, Stud
54,392 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 1400 V 300A Chassis, Stud Mount DO-205AB (DO-9)
301U140 G R BL
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1400 V |
| Current - Average Rectified (Io) | 300A |
| Voltage - Forward (Vf) (Max) @ If | 1.22 V @ 942 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 15 mA @ 1400 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | DO-205AB, DO-9, Stud |
| Supplier Device Package | DO-205AB (DO-9) |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Base Product Number | 301U140 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

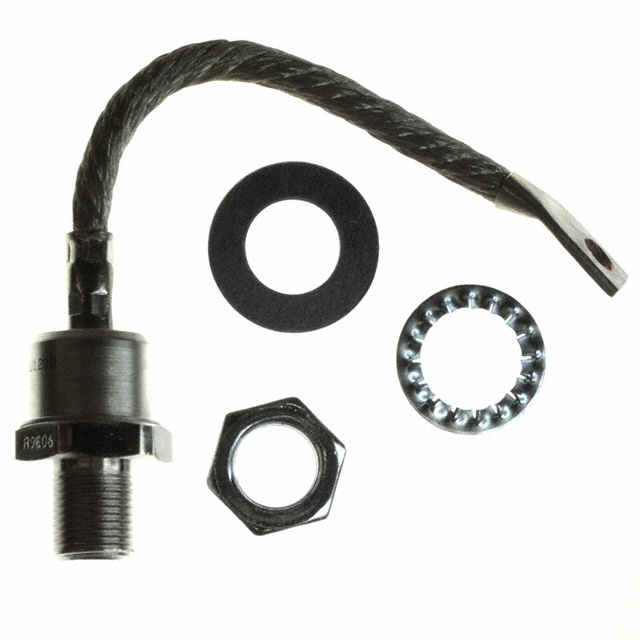

| Part Number | 301U120 | VS-HFA25PB60-N3 | RS07K-GS18 | S5M-M3/9AT |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GP 1.2KV 330A DO205AB | DIODE GP 600V 25A TO247AC | DIODE GP 800V 500MA DO219AB | DIODE GEN PURP 1KV 5A DO214AB |
| Series | - | HEXFRED® | - | - |
| Packaging | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
