Product CatalogPart Number
3042780
Manufacturer
Phoenix ContactDescription
TERM BLOCK PLUG 1POS STR
Datasheet
DatasheetPackage
-
In Stock
50,375 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3042780
3042780
lmages are for reference only.Payment Methods
Delivery Services
1 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
Quick Inquiry
3042780
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | CLIPLINE ST-COMBI SP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Female Sockets |
| Number of Positions | 1 |
| Positions Per Level | 1 |
| Number of Levels | 1 |
| Pitch | - |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 32A |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG | 10-28 AWG |
| Wire Gauge or Range - mm² | 0.08-6mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | 10mm |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 1.634" (41.50mm) |
| Current - UL | 30 A |
| Voltage - UL | 600 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

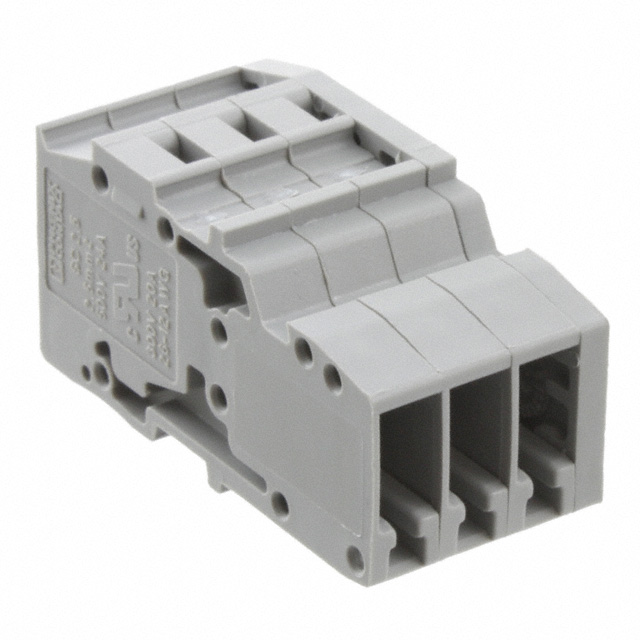

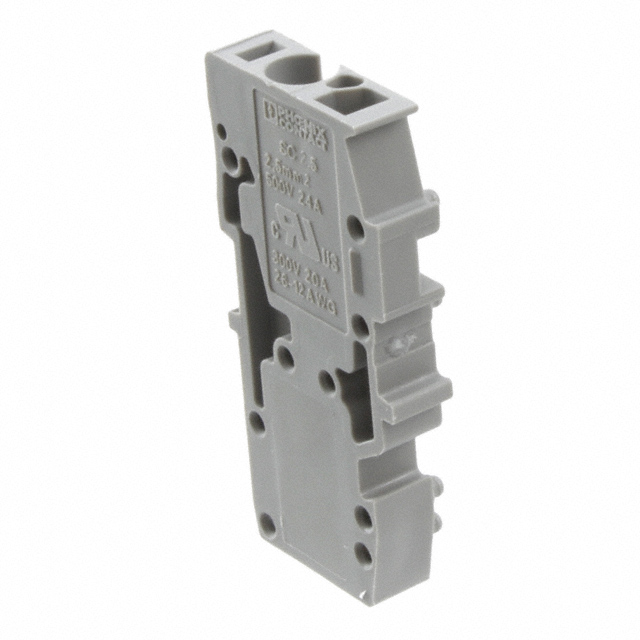

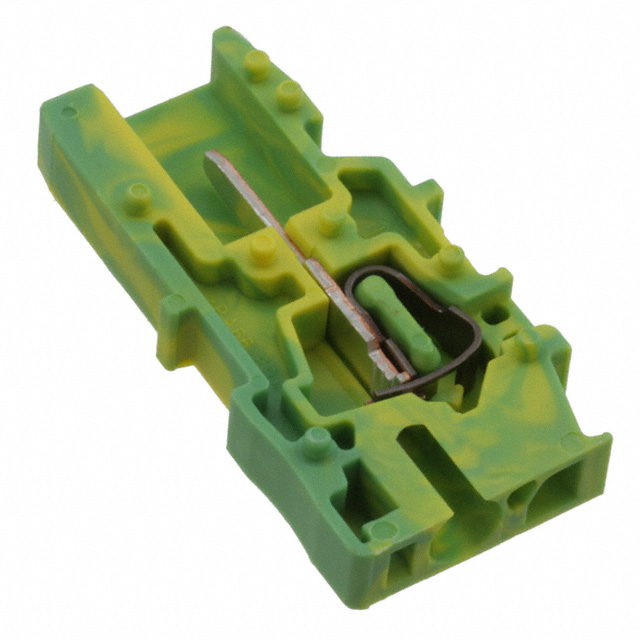

| Part Number | 3042188 | 3042191 | 3042201 | 3042269 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TERM BLOCK RCPT 1POS STR | TERM BLOCK RCPT 1POS STR | TERM BLOCK RCPT 1POS STR | TERM BLOCK RCPT 3POS STR |
| Series | CLIPLINE COMBI SC | CLIPLINE COMBI SC | CLIPLINE COMBI SC | CLIPLINE COMBI SC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
