Product CatalogPart Number
31007123
Manufacturer
METZ CONNECT USA Inc.Description
SCREW TYPE TERMINAL BLOCK, PLUG,
Datasheet
DatasheetPackage
-
In Stock
16,567 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
31007123
31007123
lmages are for reference only.Payment Methods
Delivery Services
23 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
Quick Inquiry
31007123
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Plug for Unshrouded Header |
| Number of Positions | 23 |
| Positions Per Level | 23 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.33-2.5mm² |
| Color | Black |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Silver |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | IP20 |
| Screw Size | M3 |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Wire Strip Length | - |
| Contact Material | Copper Beryllium |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

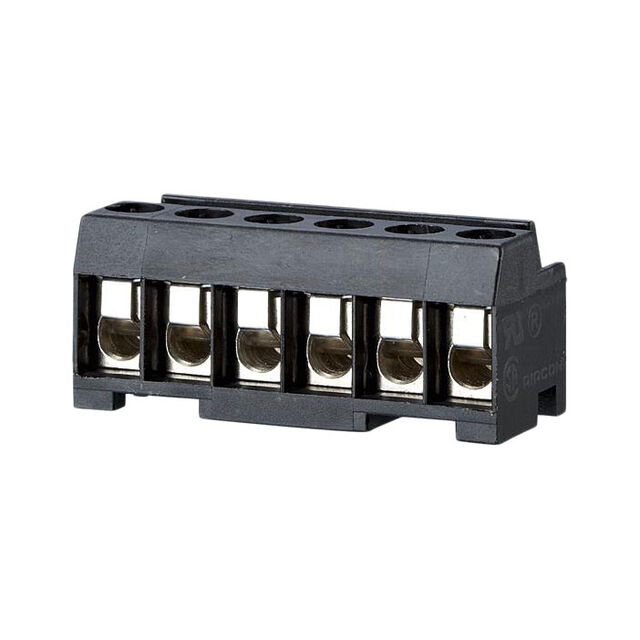

| Part Number | 31007120 | 31007121 | 31007122 | 31007124 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SCREW TYPE TERMINAL BLOCK, PLUG, | SCREW TYPE TERMINAL BLOCK, PLUG, | SCREW TYPE TERMINAL BLOCK, PLUG, | SCREW TYPE TERMINAL BLOCK, PLUG, |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
31007102
METZ CONNECT USA Inc.
31007103
METZ CONNECT USA Inc.
31007104
METZ CONNECT USA Inc.
31007105
METZ CONNECT USA Inc.

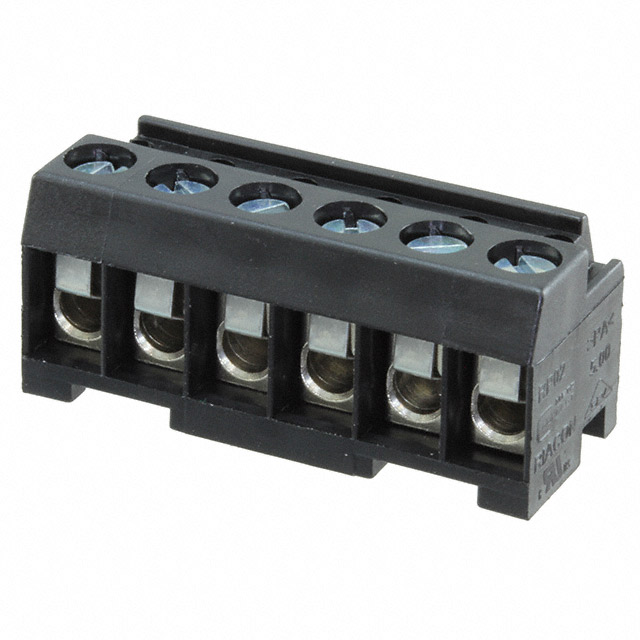

31007106
