Product CatalogPart Number
31020115
Manufacturer
METZ CONNECT USA Inc.Description
SHROUDED HEADER, VERTICAL, PCB,
Datasheet
DatasheetPackage
-
In Stock
73,885 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
31020115
31020115
lmages are for reference only.Payment Methods
Delivery Services
15 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Quick Inquiry
31020115
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 15 |
| Positions Per Level | 15 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Silver |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Zinc |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.205" (5.21mm) |
| Insulation Height | 0.480" (12.20mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 31020110 | 31020111 | 31020112 | 31020113 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SHROUDED HEADER, VERTICAL, PCB, | SHROUDED HEADER, VERTICAL, PCB, | SHROUDED HEADER, VERTICAL, PCB, | SHROUDED HEADER, VERTICAL, PCB, |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
31020102
METZ CONNECT USA Inc.

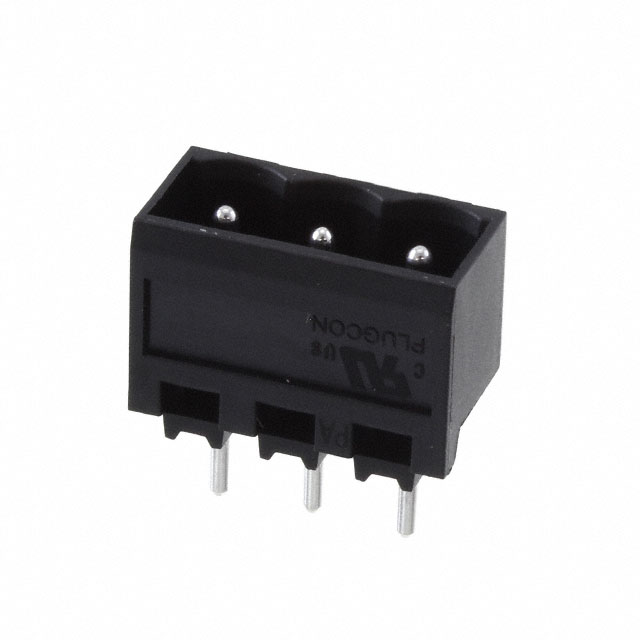

31020103
METZ CONNECT USA Inc.

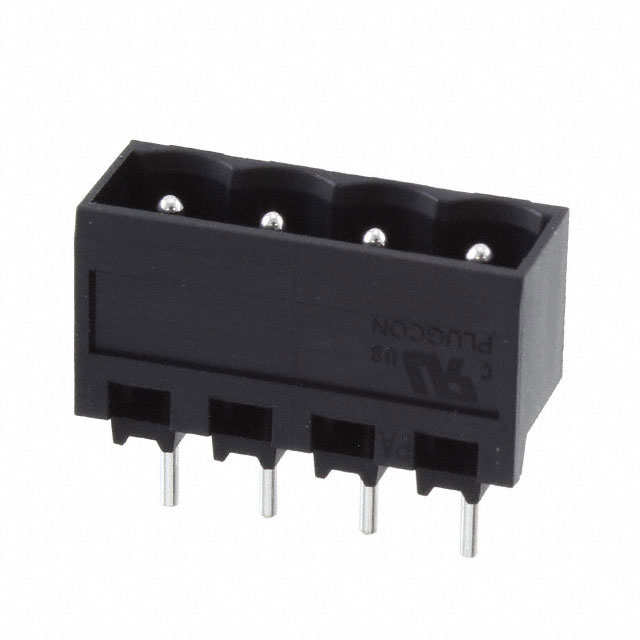

31020104
METZ CONNECT USA Inc.
31020105
METZ CONNECT USA Inc.

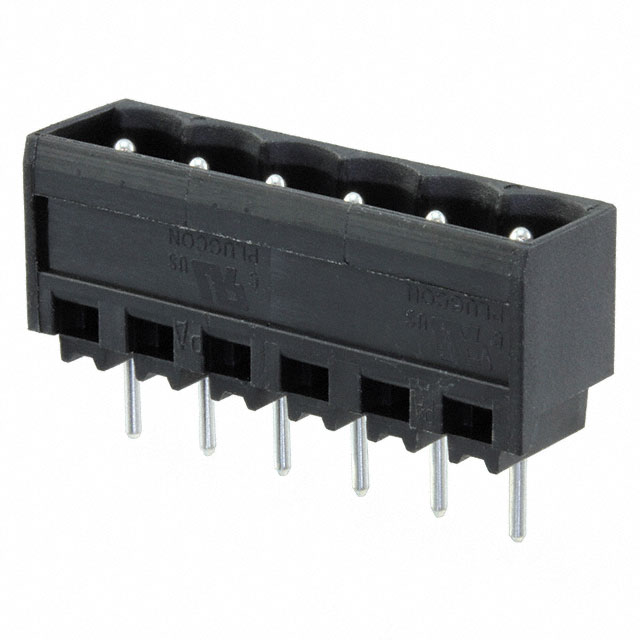

31020106
METZ CONNECT USA Inc.
31020107
METZ CONNECT USA Inc.

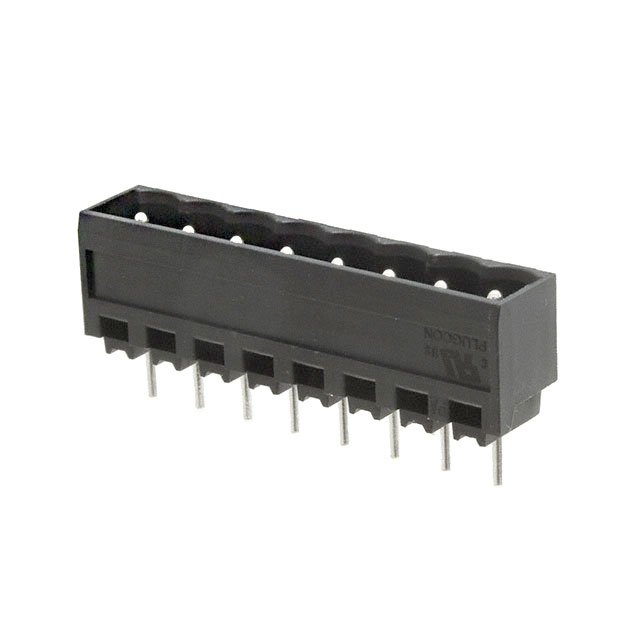

31020108
METZ CONNECT USA Inc.
31020109
METZ CONNECT USA Inc.
31020110
METZ CONNECT USA Inc.

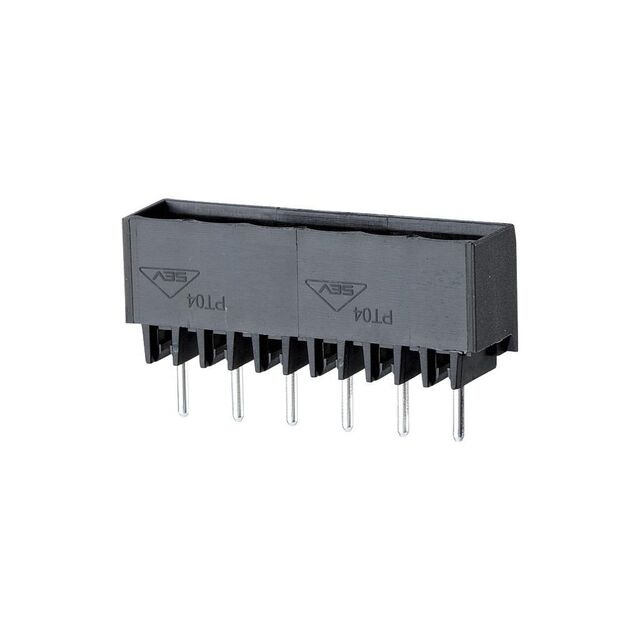

31020111
