315-13-120-61-001000
lmages are for reference only.315-13-120-61-001000
CONN RCPT 20POS 0.1 GOLD PCB
Datasheet-
47,591 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
315-13-120-61-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 315 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Contact Length - Post | 0.108" (2.75mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 100V, 150VDC |
| Applications | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Base Product Number | 315-13 |
| Product Attribute |  |
|
|
 |

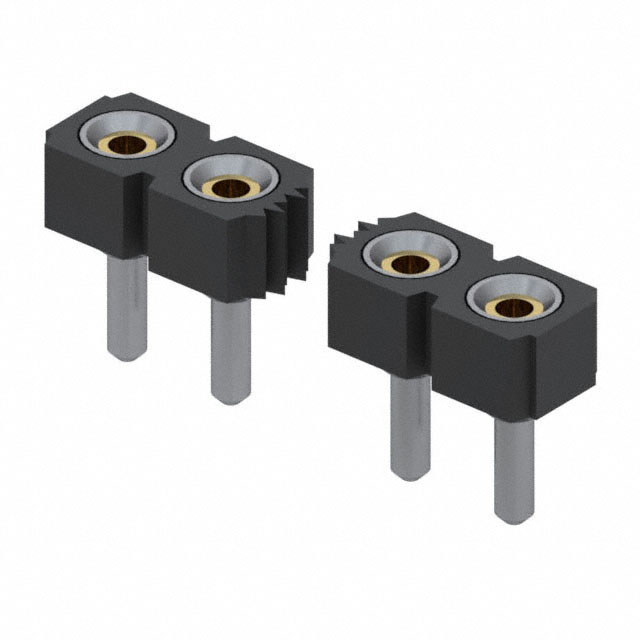

| Part Number | 315-13-120-41-003000 | 315-13-120-41-004000 | 315-13-120-61-003000 | 315-11-101-41-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | CONN RCPT 20POS 0.1 GOLD PCB | STANDRD SOLDER TAIL SIP SOCKET | CONN RCPT 20POS 0.1 GOLD PCB | CONN RCPT 1POS GOLD PCB |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Tube | Bulk | Tube | Bulk |
