Product CatalogPart Number
3298080.H
Manufacturer
Littelfuse Inc.Description
FUSE BRD MNT 80A 32VDC MOD 100PC
Datasheet
DatasheetPackage
Module
In Stock
84,097 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3298080.H
3298080.H
lmages are for reference only.Payment Methods
Delivery Services
80 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Bolt Mount Module
Quick Inquiry
3298080.H
Specifications
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | ZCASE® SMZ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 80 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | - |
| Package / Case | Module |
| Breaking Capacity @ Rated Voltage | 2kA |
| Melting I²t | 15500.0 |
| Approval Agency | - |
| Operating Temperature | -40°C ~ 125°C |
| Color | - |
| Size / Dimension | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.000715 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

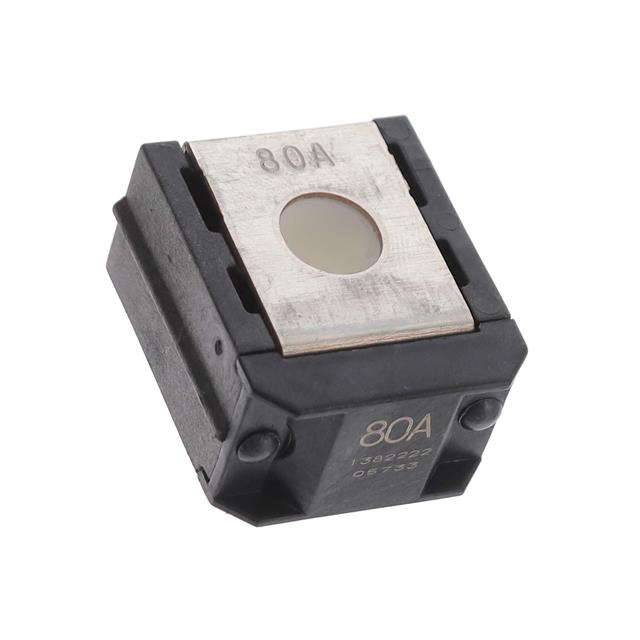

| Part Number | 3298080.Z | 3298040.H | 3298040.Z | 3298060.H |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE AUTOMOTIVE 80A 32VDC MODULE | FUSE BRD MNT 40A 32VDC MOD 100PC | FUSE BOARD MNT 40A 32VDC 480PC | FUSE BRD MNT 60A 32VDC MOD 100PC |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Bulk | Box | Bulk | Box |
