N-Channel 30 V 5.6A (Tc) 1.4W (Tc) Surface Mount SOT-23-3

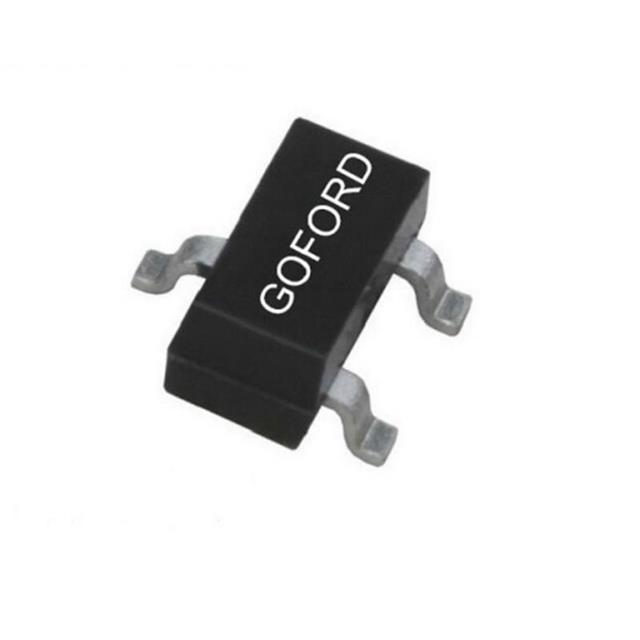

3400L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 5.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 2.8A, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 820 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 9.5 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

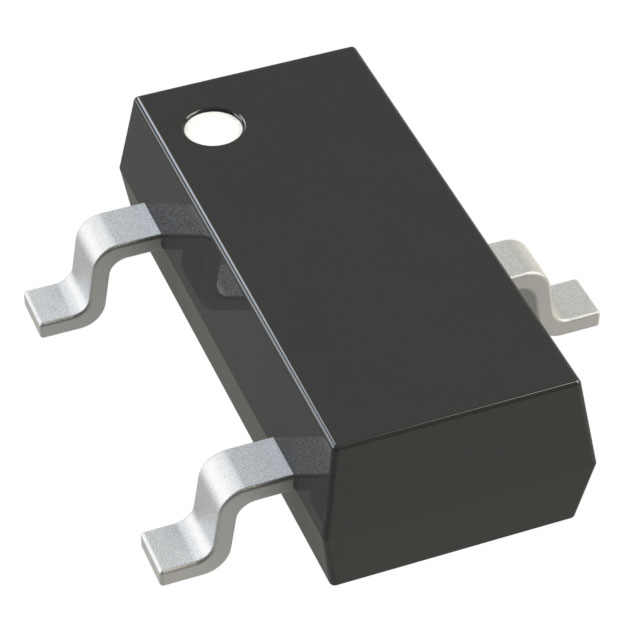

| Part Number | 3415A | 3400 | 3401 | BS170PSTOA |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | P20V,RD(MAX)<45M@-4.5V,RD(MAX)<6 | N30V,RD(MAX)<27M@10V,RD(MAX)<33M | MOSFET P-CH 30V 4.2A SOT-23 | MOSFET N-CH 60V 270MA E-LINE |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
