3405.0165.24

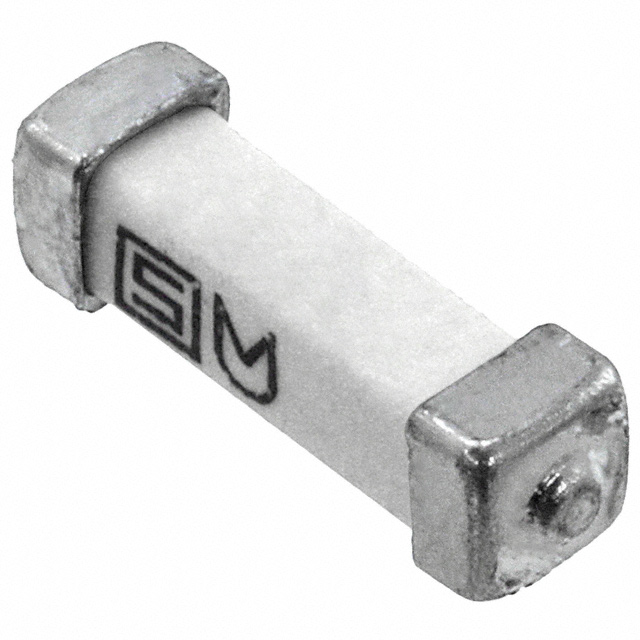

lmages are for reference only.3405.0165.24
FUSE BRD MNT 800MA 250VAC 125VDC
Datasheet2-SMD, Square End Block
89,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
800 mA 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
3405.0165.24
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | UMF 250 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 200A |
| Melting I²t | 0.21 |
| Approval Agency | cURus, VDE |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) |
| Base Product Number | 3405.0165 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

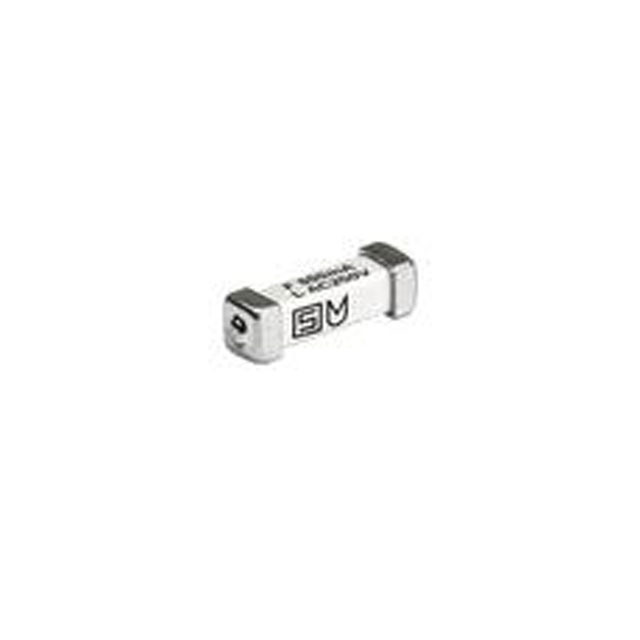

| Part Number | 3405.0163.11 | 3405.0164.11 | 3405.0164.24 | 3405.0166.11 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MNT 500MA 250VAC 125VDC | UMF 250 FUSE F 630MA L 250V AC | UMF 250 FUSE F 630MA L 250V AC | FUSE BRD MT 1A 250VAC 125VDC SMD |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Strip | Bulk | Bulk | Strip |
