3410.0240.03

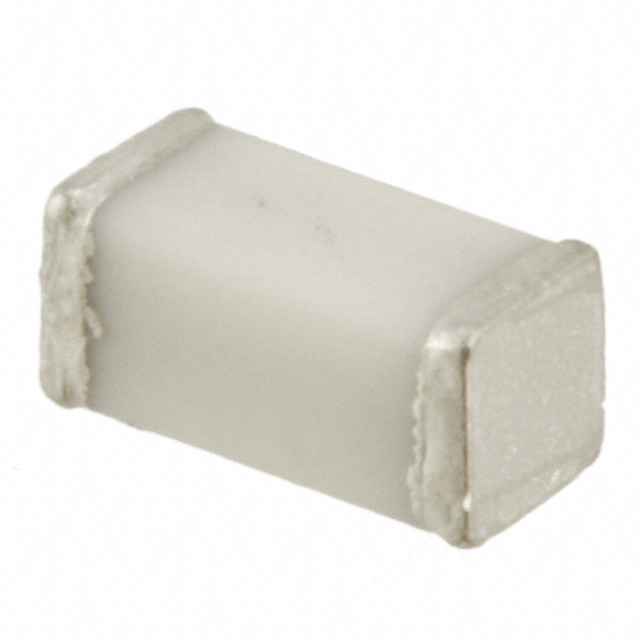

lmages are for reference only.3410.0240.03
FUSE BRD MNT 5A 32VAC 125VDC SMD
Datasheet2-SMD, Square End Block
78,534 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 A 32 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
3410.0240.03
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | MGA |
| Packaging | Digi-Reel® |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 125 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 0.23 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 150°C |
| Color | - |
| Size / Dimension | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) |
| Base Product Number | 3410.0240 |
| DC Cold Resistance | 0.017 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 3410.0240.02 | 3410.0021.02 | 3410.0021.03 | 3410.0021.04 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MNT 5A 32VAC 125VDC SMD | FUSE BRD MT 200MA 125VAC/VDC SMD | FUSE BRD MT 200MA 125VAC/VDC SMD | FUSE BRD MT 200MA 125VAC/VDC SMD |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
