3412.0121.11

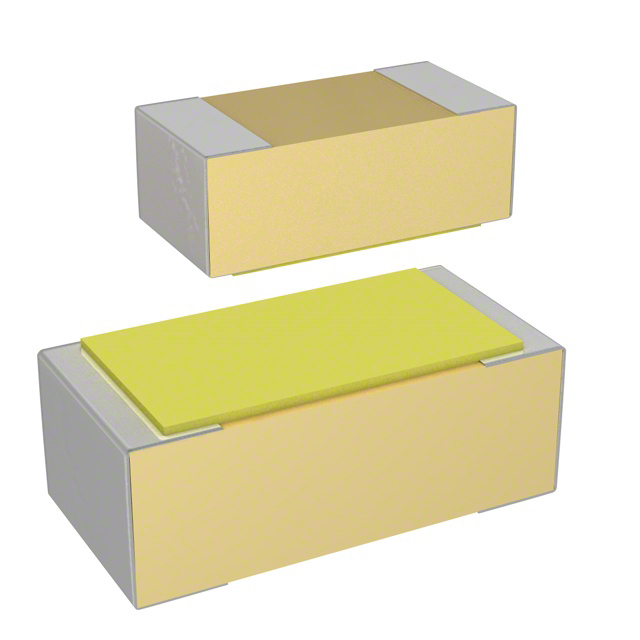

lmages are for reference only.3412.0121.11
FUSE BRD MNT 3A 32VAC 32VDC 0603
Datasheet0603 (1608 Metric)
78,557 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 A 32 V AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
3412.0121.11
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | USF 0603 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 3 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 32 V |
| Response Time | Fast Blow |
| Package / Case | 0603 (1608 Metric) |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 0.58 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 90°C |
| Color | - |
| Size / Dimension | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) |
| Base Product Number | 3412.0121 |
| DC Cold Resistance | 0.0186 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 3412.0121.24 | 3412.0121.26 | 3412.0113.11 | 3412.0113.24 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MNT 3A 32VAC 63VDC 0603 | FUSE BRD MNT 3A 32VAC 63VDC 0603 | FUSE BRD MT 500MA 63VAC/VDC 0603 | FUSE BOARD MNT 500MA 32VAC 63VDC |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Strip | Cut Tape (CT) |
