Product CatalogPart Number
3413.0330.24
Manufacturer
SCHURTER Inc.Description
FUSE BOARD MNT 15A 32VAC 63VDC
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
12,616 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3413.0330.24
3413.0330.24

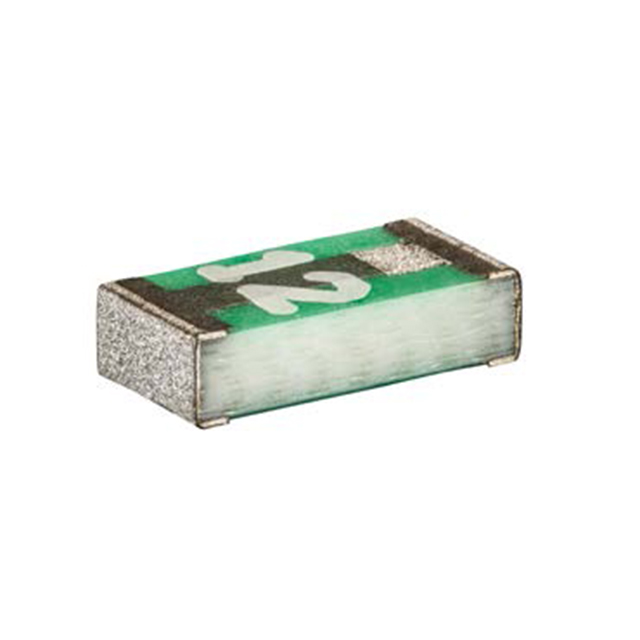

lmages are for reference only.Payment Methods
Delivery Services
15 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Quick Inquiry
3413.0330.24
Specifications
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | UST 1206 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 15 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 63 V |
| Response Time | Slow Blow |
| Package / Case | 1206 (3216 Metric) |
| Breaking Capacity @ Rated Voltage | 100A |
| Melting I²t | 65.0 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 90°C |
| Color | - |
| Size / Dimension | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) |
| Base Product Number | 3413.0330 |
| DC Cold Resistance | 0.00315 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3413.0330.11 | 3413.0330.26 | 3413.0002.22 | 3413.0002.26 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MT 15A 32VAC 63VDC 1206 | FUSE BOARD MNT 15A 32VAC 63VDC | FUSE BRD MT 50MA 125VAC 63VDC | USFF 1206 FUSE FF 50MA |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Strip | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
